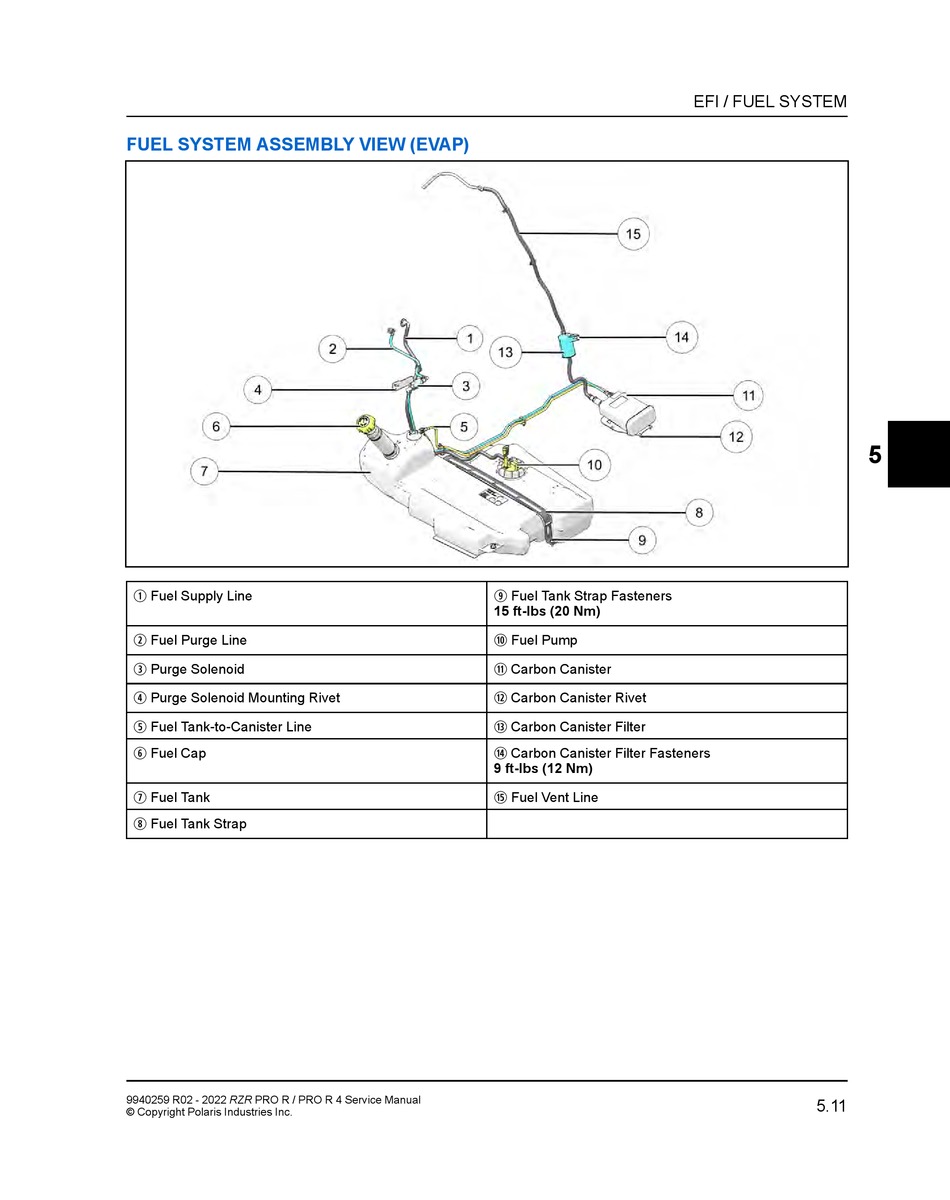

FUEL SYSTEM ASSEMBLY VIEW (EVAP)

q
Fuel Supply Line
w
Fuel Purge Line
e
Purge Solenoid
r
Purge Solenoid Mounting Rivet
t
Fuel Tank-to-Canister Line
y
Fuel Cap
u
Fuel Tank
i
Fuel Tank Strap
9940259 R02 - 2022 RZR PRO R / PRO R 4 Service Manual
© Copyright Polaris Industries Inc.
o
Fuel Tank Strap Fasteners
15 ft-lbs (20 Nm)
a
Fuel Pump
s
Carbon Canister
d
Carbon Canister Rivet
f
Carbon Canister Filter
g
Carbon Canister Filter Fasteners
9 ft-lbs (12 Nm)
h
Fuel Vent Line
