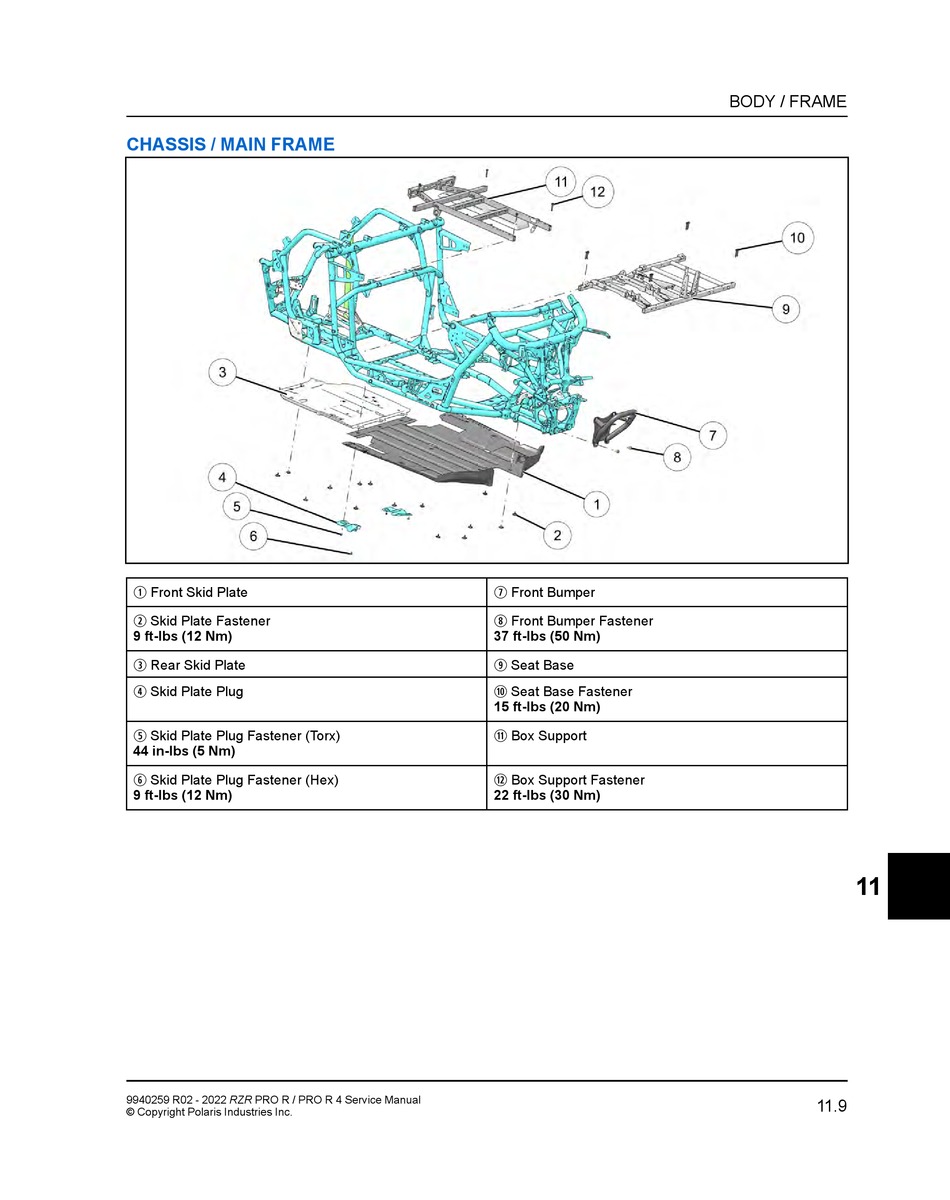

CHASSIS / MAIN FRAME

q
Front Skid Plate
w
Skid Plate Fastener
9 ft-lbs (12 Nm)
e
Rear Skid Plate
r
Skid Plate Plug
t
Skid Plate Plug Fastener (Torx)
44 in-lbs (5 Nm)
y
Skid Plate Plug Fastener (Hex)
9 ft-lbs (12 Nm)
9940259 R02 - 2022 RZR PRO R / PRO R 4 Service Manual
© Copyright Polaris Industries Inc.
u
Front Bumper
i
Front Bumper Fastener
37 ft-lbs (50 Nm)
o
Seat Base
a
Seat Base Fastener
15 ft-lbs (20 Nm)
s
Box Support
d
Box Support Fastener
22 ft-lbs (30 Nm)
