ENGINE / COOLING SYSTEM
INTAKE / EXHAUST SYSTEM

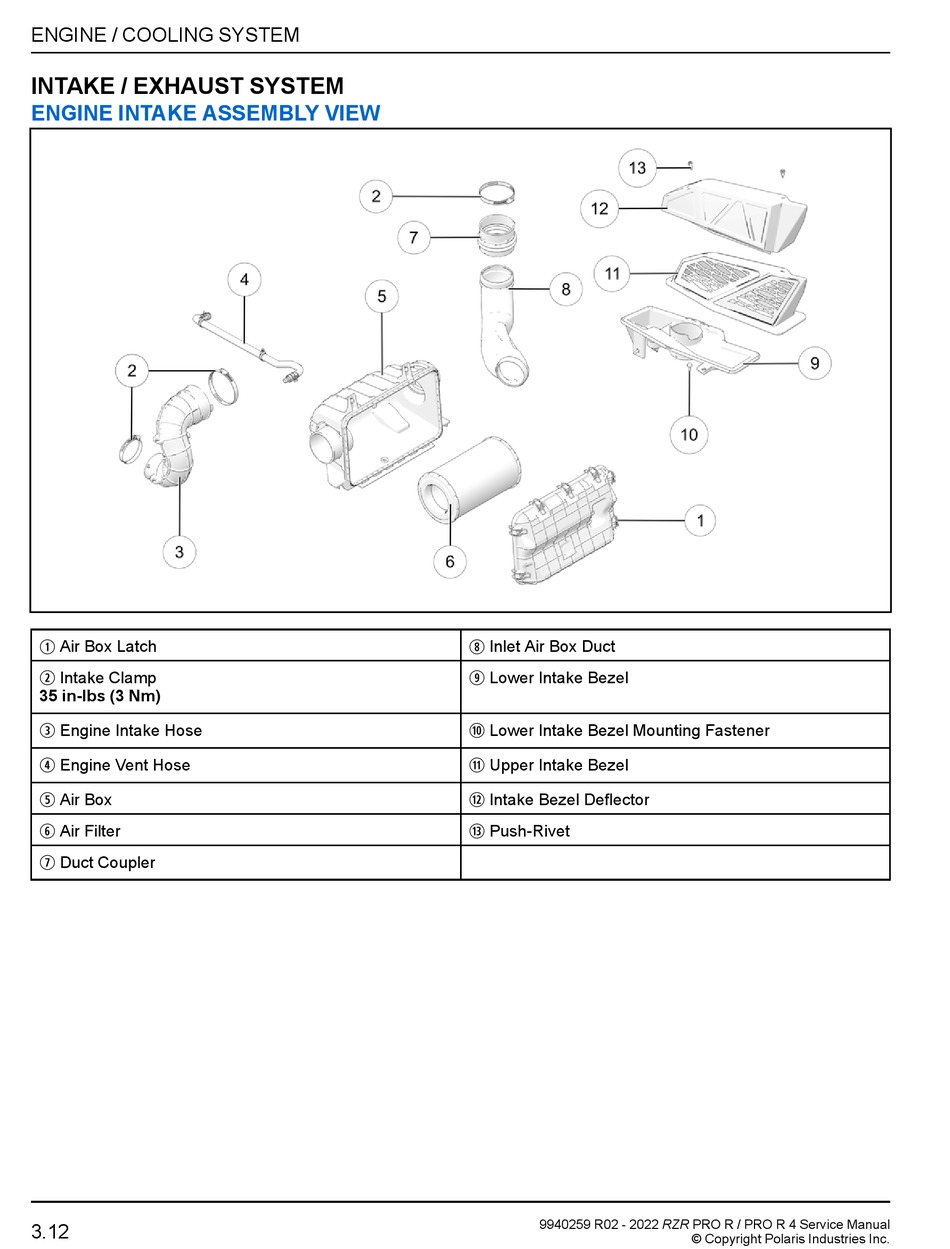

ENGINE INTAKE ASSEMBLY VIEW
q
Air Box Latch
w
Intake Clamp
35 in-lbs (3 Nm)
e
Engine Intake Hose
r
Engine Vent Hose
t
Air Box
y
Air Filter
u
Duct Coupler
3.12
i
Inlet Air Box Duct
o
Lower Intake Bezel
a
Lower Intake Bezel Mounting Fastener
s
Upper Intake Bezel
d
Intake Bezel Deflector
f
Push-Rivet
9940259 R02 - 2022 RZR PRO R / PRO R 4 Service Manual
© Copyright Polaris Industries Inc.
