STEERING / SUSPENSION

REAR SUSPENSION

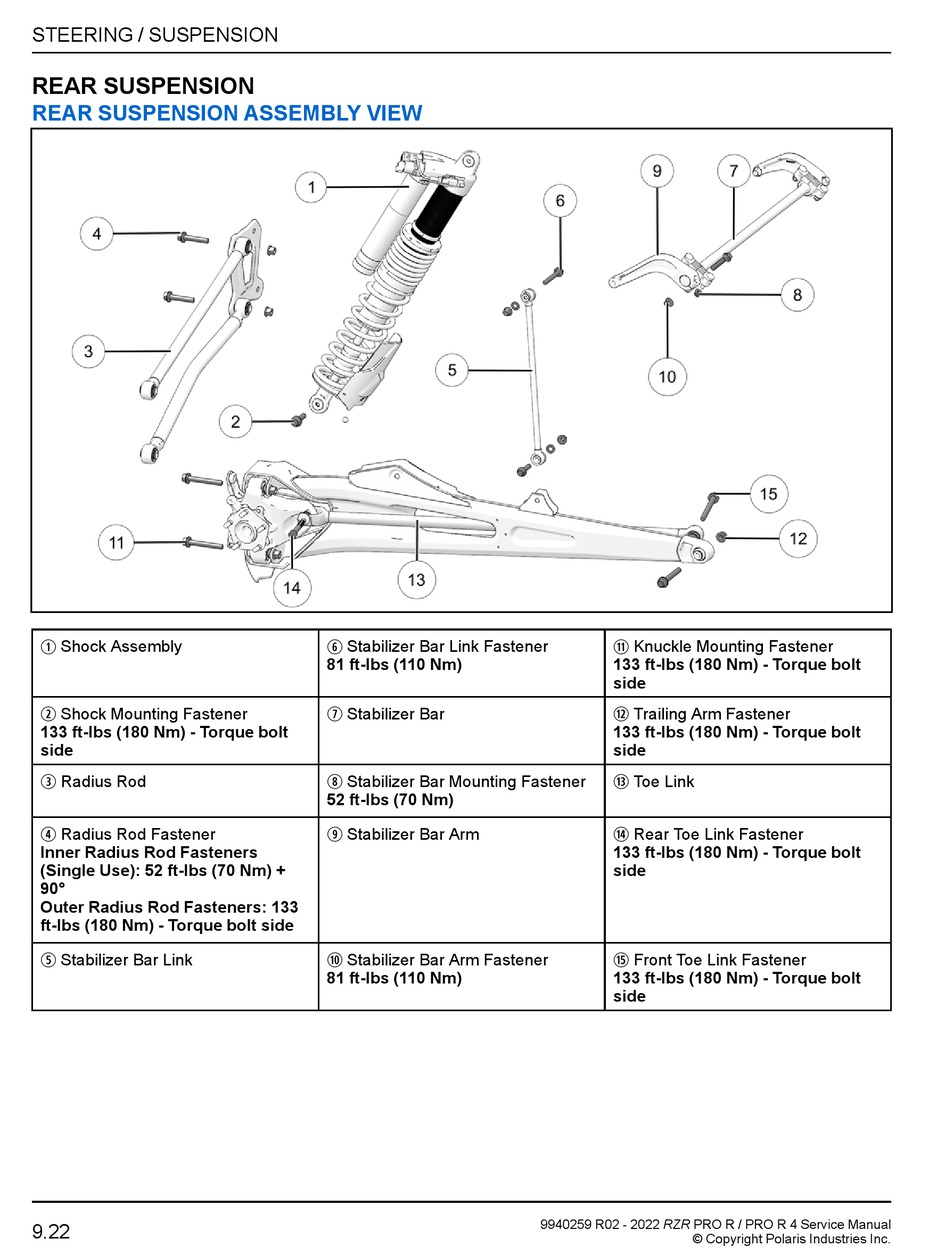

REAR SUSPENSION ASSEMBLY VIEW

q
Shock Assembly
w
Shock Mounting Fastener
133 ft-lbs (180 Nm) - Torque bolt
side
e
Radius Rod
r
Radius Rod Fastener
Inner Radius Rod Fasteners
(Single Use): 52 ft-lbs (70 Nm) +
90°
Outer Radius Rod Fasteners: 133
ft-lbs (180 Nm) - Torque bolt side
t
Stabilizer Bar Link
9.22
y
Stabilizer Bar Link Fastener
81 ft-lbs (110 Nm)
u
Stabilizer Bar
i
Stabilizer Bar Mounting Fastener
52 ft-lbs (70 Nm)
o
Stabilizer Bar Arm
a
Stabilizer Bar Arm Fastener
81 ft-lbs (110 Nm)
s
Knuckle Mounting Fastener
133 ft-lbs (180 Nm) - Torque bolt
side
d
Trailing Arm Fastener
133 ft-lbs (180 Nm) - Torque bolt
side
f
Toe Link
g
Rear Toe Link Fastener
133 ft-lbs (180 Nm) - Torque bolt
side
h
Front Toe Link Fastener
133 ft-lbs (180 Nm) - Torque bolt
side
