2.3 Downloading the Project to the Module

In order for the module to use the settings you configured, you must download the
updated Project file from your PC to the module.
1 In the tree view in ProSoft Configuration Builder, right-click the MVI56E-SMGC icon
and then choose D
box.

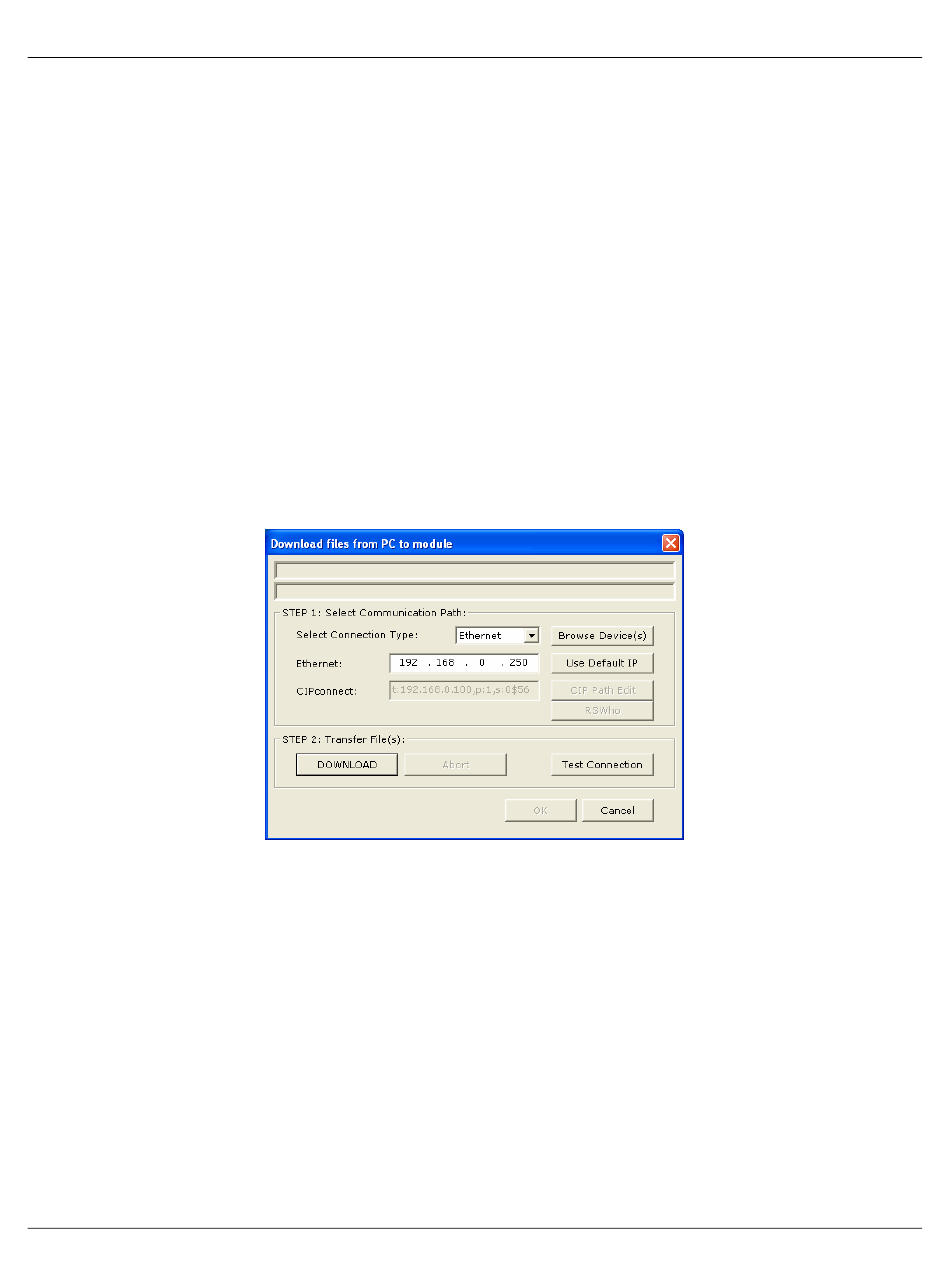

2 In the Download dialog box, choose the connection type in the Select Connection
Type dropdown box:
o Choose E
cable.
o Choose 1756 ENBT if you are connecting to the module through CIPconnect or
RSWho.
Note: If you connected to the module using an Ethernet cable and set a temporary
IP address, the Ethernet address field contains that temporary IP address. ProSoft
Configuration Builder uses this temporary IP address to connect to the module.
3 Click T
EST
4 If the connection succeeds, click D
the module.
ProSoft Technology, Inc.
OWNLOAD FROM
if you are connecting to the module through the Ethernet
THERNET
C to verify that the IP address allows access to the module.
ONNECTION
PC D . This opens the Download dialog
TO EVICE
to transfer the Ethernet configuration to
OWNLOAD
