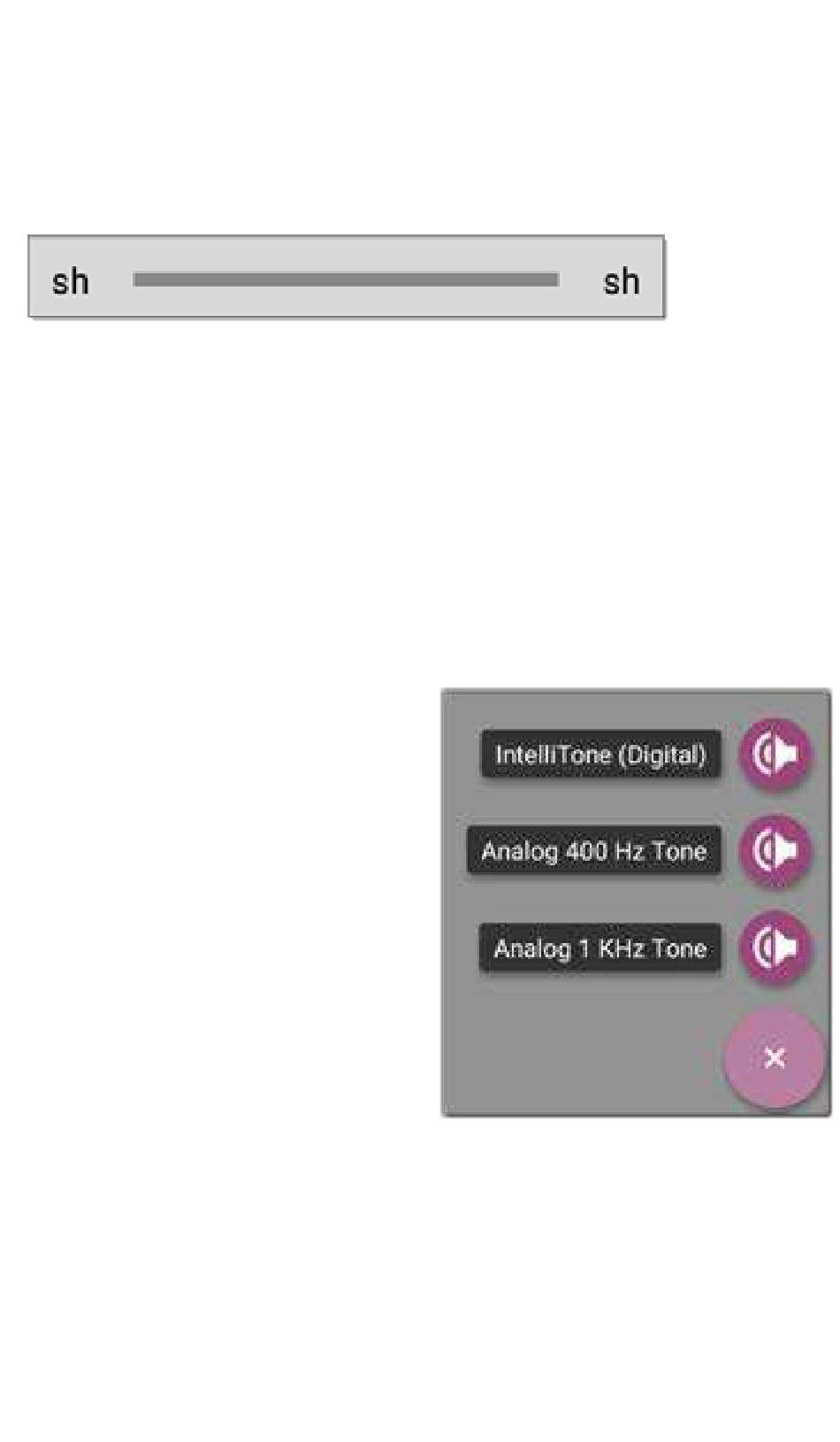

The last row of WireView results indicates
whether the cable is shielded: an unbroken line
between sh means a shielded cable is detected.

Toning Function

You can also trace a cable using a Fluke
Networks* IntelliTone™ Probe, or any analog
probe, and the Tone function.
Connect a cable into the left side RJ-45 port,
touch the FAB, and
select the appropriate
Tone option for your
probe. The EtherScope
nXG Controlled
Edition emits the tone
through the cable, and
the probe detects it,
allowing you to trace
the wire or locate it in
the switch closet.
* IntelliTone is a trademark of Fluke Networks.
