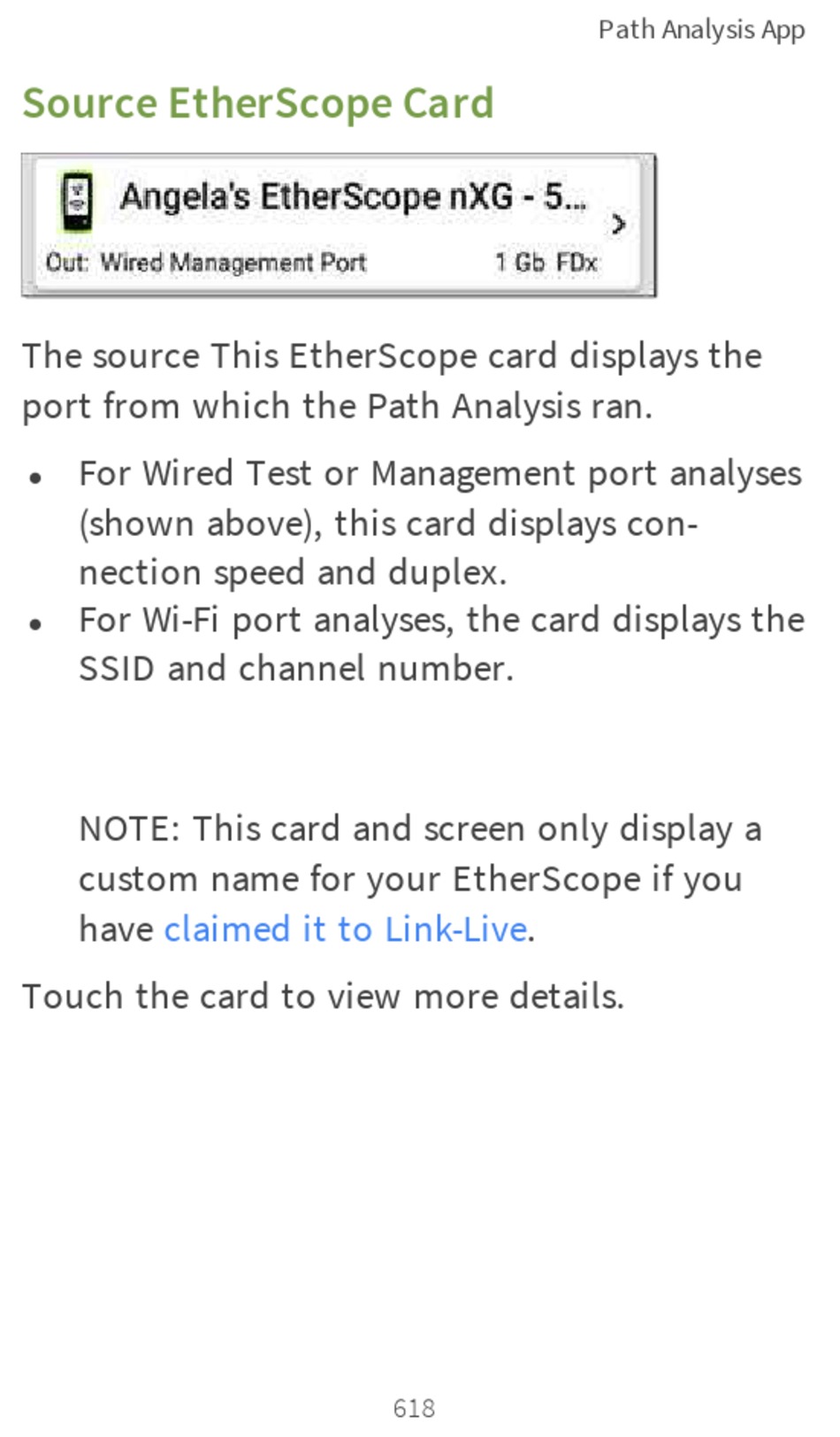

Source EtherScope Card
The source This EtherScope card displays the
port from which the Path Analysis ran.
For Wired Test or Management port analyses
l
(shown above), this card displays con-
nection speed and duplex.
For Wi-Fi port analyses, the card displays the
l
SSID and channel number.
NOTE: This card and screen only display a
custom name for your EtherScope if you
have claimed it to
Touch the card to view more details.
Link-Live.
618
Path Analysis App
