LinkRunner AT Reflector

Follow these steps to set up a LinkRunner AT
(2000) Reflector:
1. Ensure the LinkRunner is connected to an
active network via the RJ-45 or Fiber test
port and is plugged into AC power.
2. On the Home screen, select Tools.
3. In General Configuration > Manage Power,
ensure the Auto Shutoff Enabled is
unchecked to prevent the unit from
powering down during the test. Save the
changed setting.

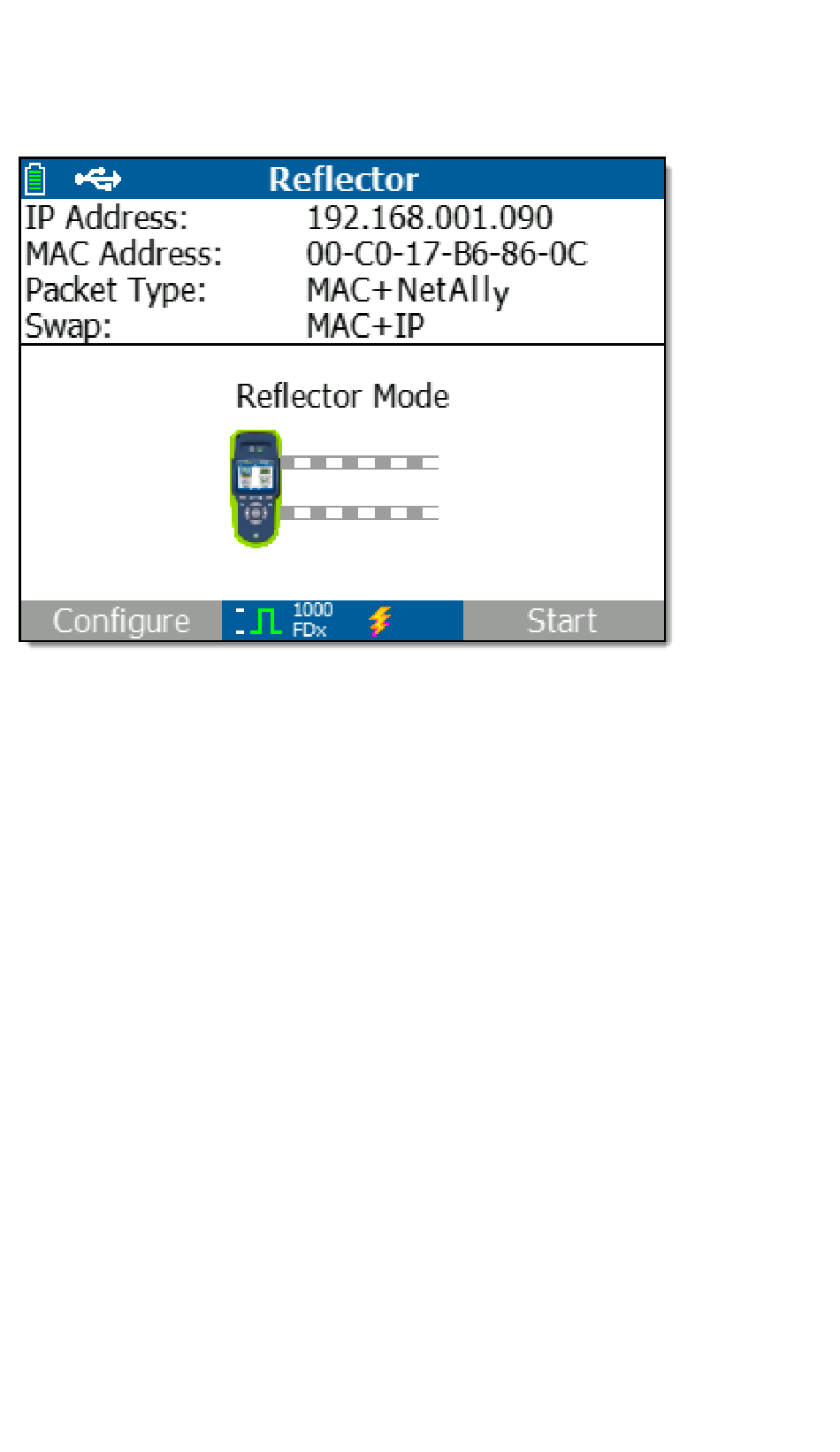

4. In the Tools menu, select Reflector.
