AutoTest App and Profiles
Timeout Threshold
The only other setting for the Gateway Test is
the timeout threshold, which indicates how
long the EtherScope waits for a response from
the gateway before grading the test as a fail.
Tap the field to select one of the value options,
or enter a custom value.
Gateway Test Results
EtherScope gets the Gateway's IP address from
DHCP or the static IP configuration, and uses
SNMP to acquire system group information and
statistics for the port that services the
EtherScope's subnet. See Discovery Settings for
information about SNMP configuration.

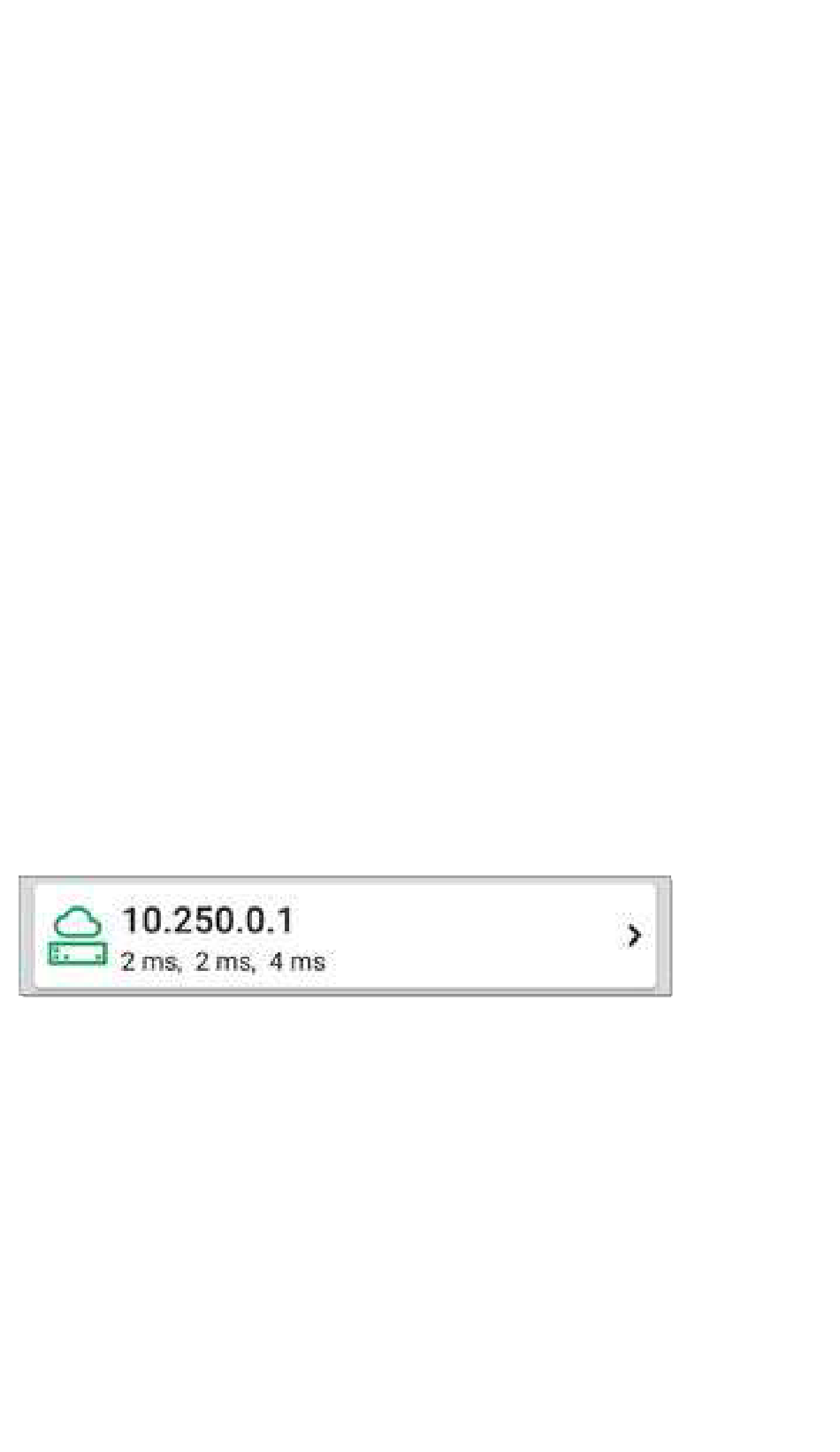

The Gateway test card shows the gateway's IP
address and the three Ping response times.
