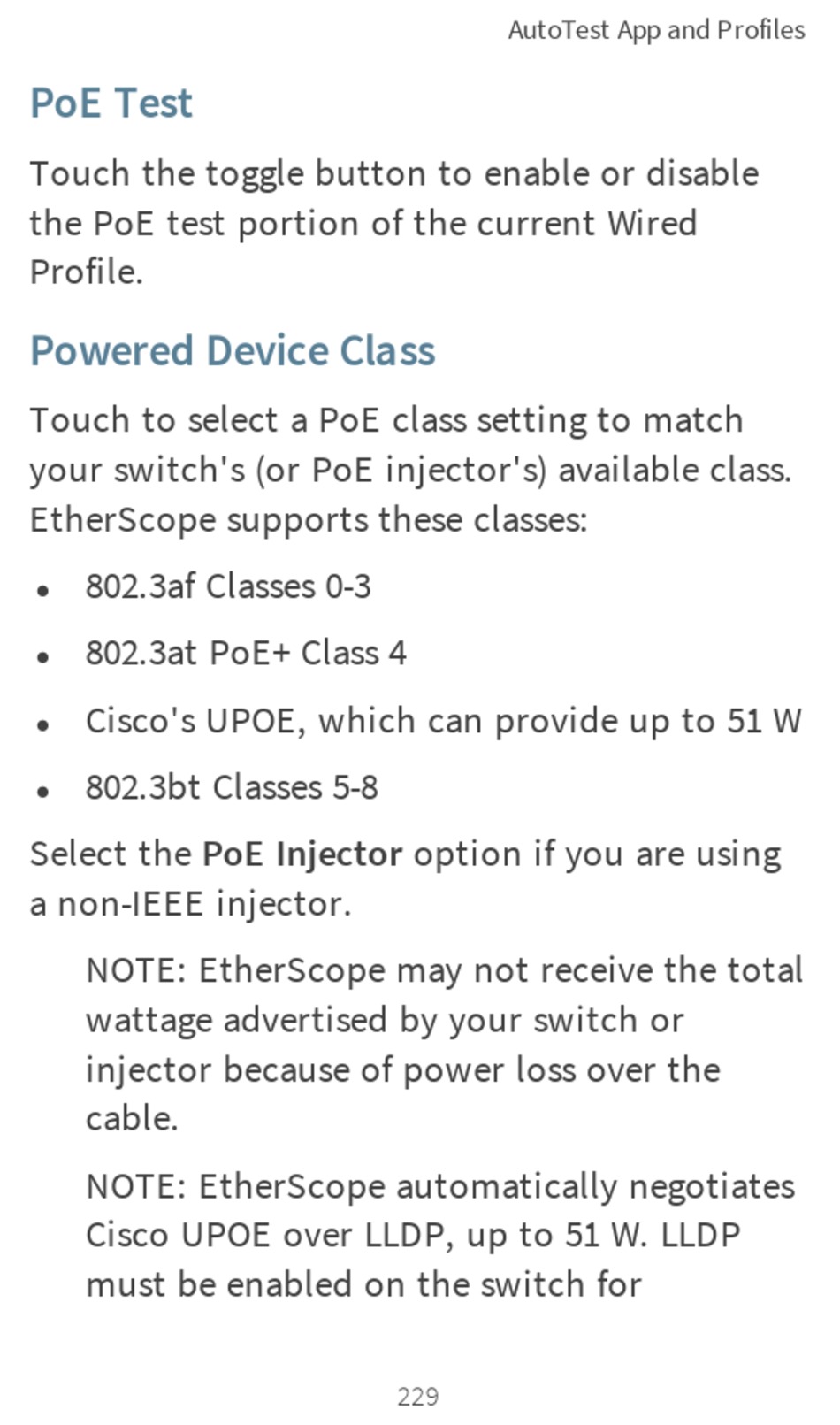

netAlly EtherScope nXG Controlled Edition User Manual page 229

PoE Test
Touch the toggle button to enable or disable
the PoE test portion of the current Wired
Profile.
Powered Device Class
Touch to select a PoE class setting to match
your switch's (or PoE injector's) available class.
EtherScope supports these classes:
802.3af Classes 0-3
l
802.3at PoE+ Class 4
l
Cisco's UPOE, which can provide up to 51 W
l
802.3bt Classes 5-8
l
Select the PoE Injector option if you are using
a non-IEEE injector.
NOTE: EtherScope may not receive the total
wattage advertised by your switch or
injector because of power loss over the
cable.
NOTE: EtherScope automatically negotiates
Cisco UPOE over LLDP, up to 51 W. LLDP
must be enabled on the switch for
