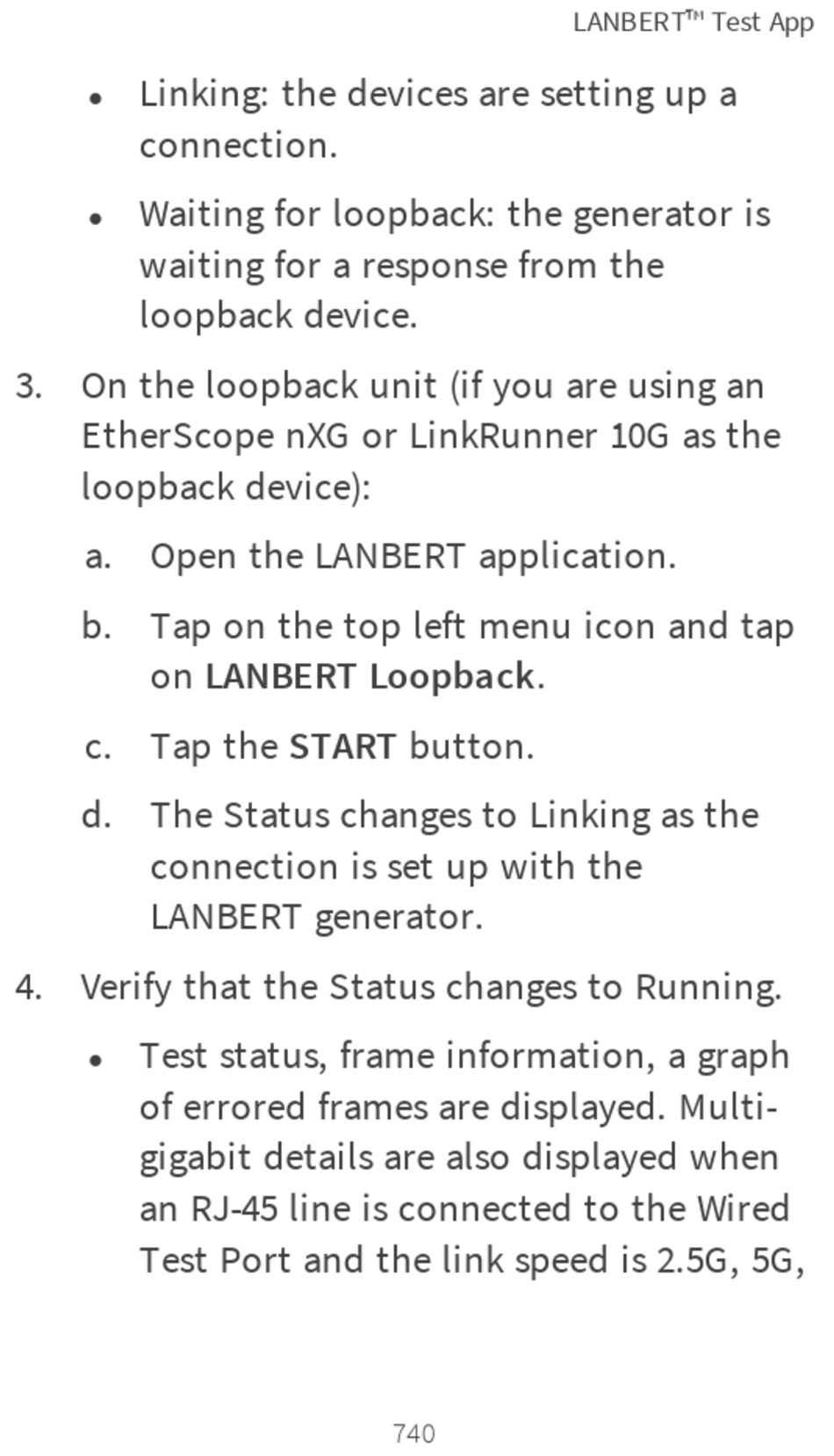

Linking: the devices are setting up a
l
connection.
Waiting for loopback: the generator is
l
waiting for a response from the
loopback device.
3. On the loopback unit (if you are using an
EtherScope nXG or LinkRunner 10G as the
loopback device):
a. Open the LANBERT application.
b. Tap on the top left menu icon and tap
on LANBERT Loopback.
c. Tap the START button.
d. The Status changes to Linking as the
connection is set up with the
LANBERT generator.
4. Verify that the Status changes to Running.
Test status, frame information, a graph
l
of errored frames are displayed. Multi-
gigabit details are also displayed when
an RJ-45 line is connected to the Wired
Test Port and the link speed is 2.5G, 5G,
