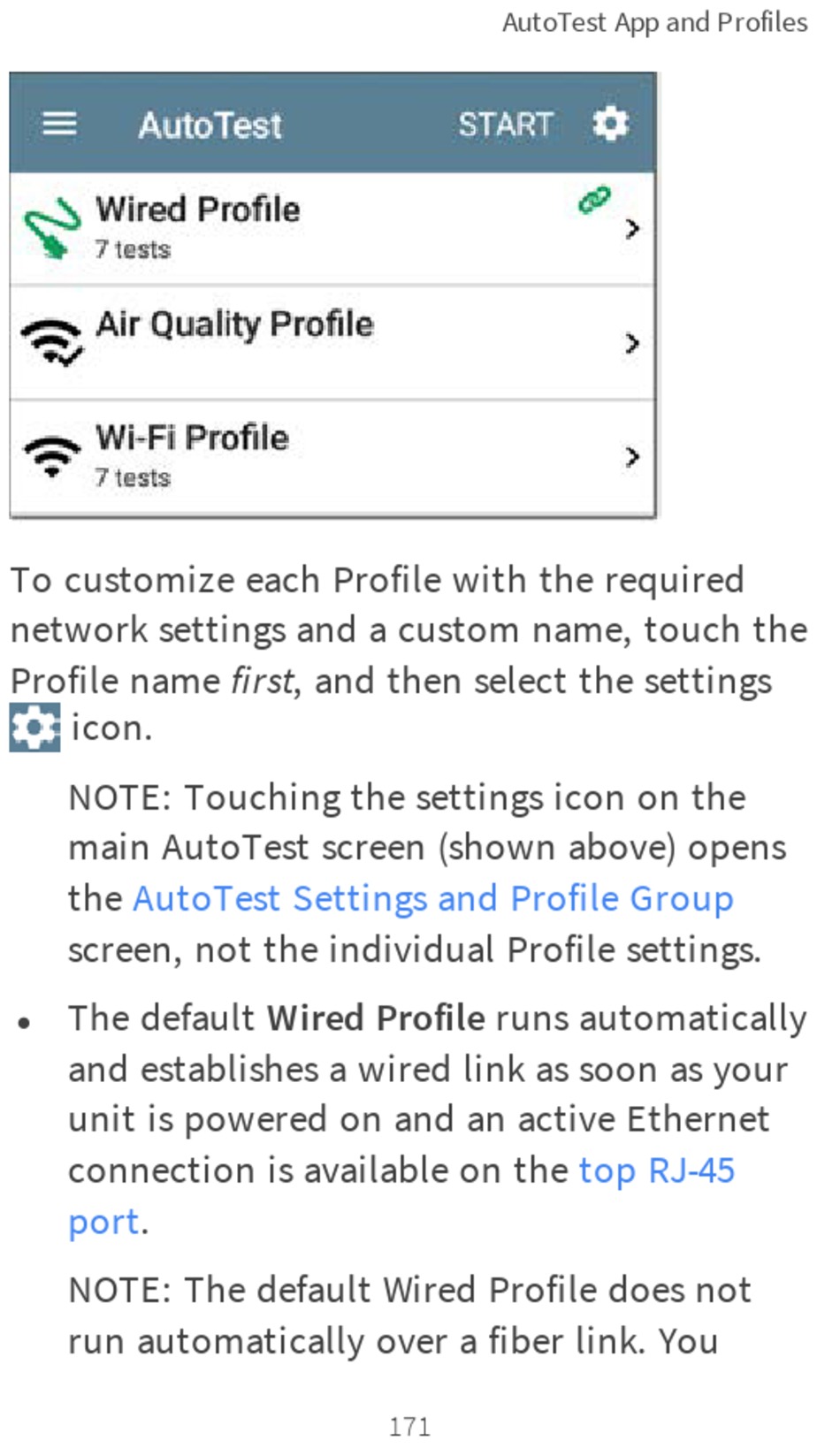

netAlly EtherScope nXG Controlled Edition User Manual page 171

To customize each Profile with the required
network settings and a custom name, touch the
Profile name first, and then select the settings
icon.
NOTE: Touching the settings icon on the
main AutoTest screen (shown above) opens
the AutoTest Settings and Profile Group
screen, not the individual Profile settings.
The default Wired Profile runs automatically
l
and establishes a wired link as soon as your
unit is powered on and an active Ethernet
connection is available on the
port.
NOTE: The default Wired Profile does not
run automatically over a fiber link. You
AutoTest App and Profiles
171
top RJ-45
