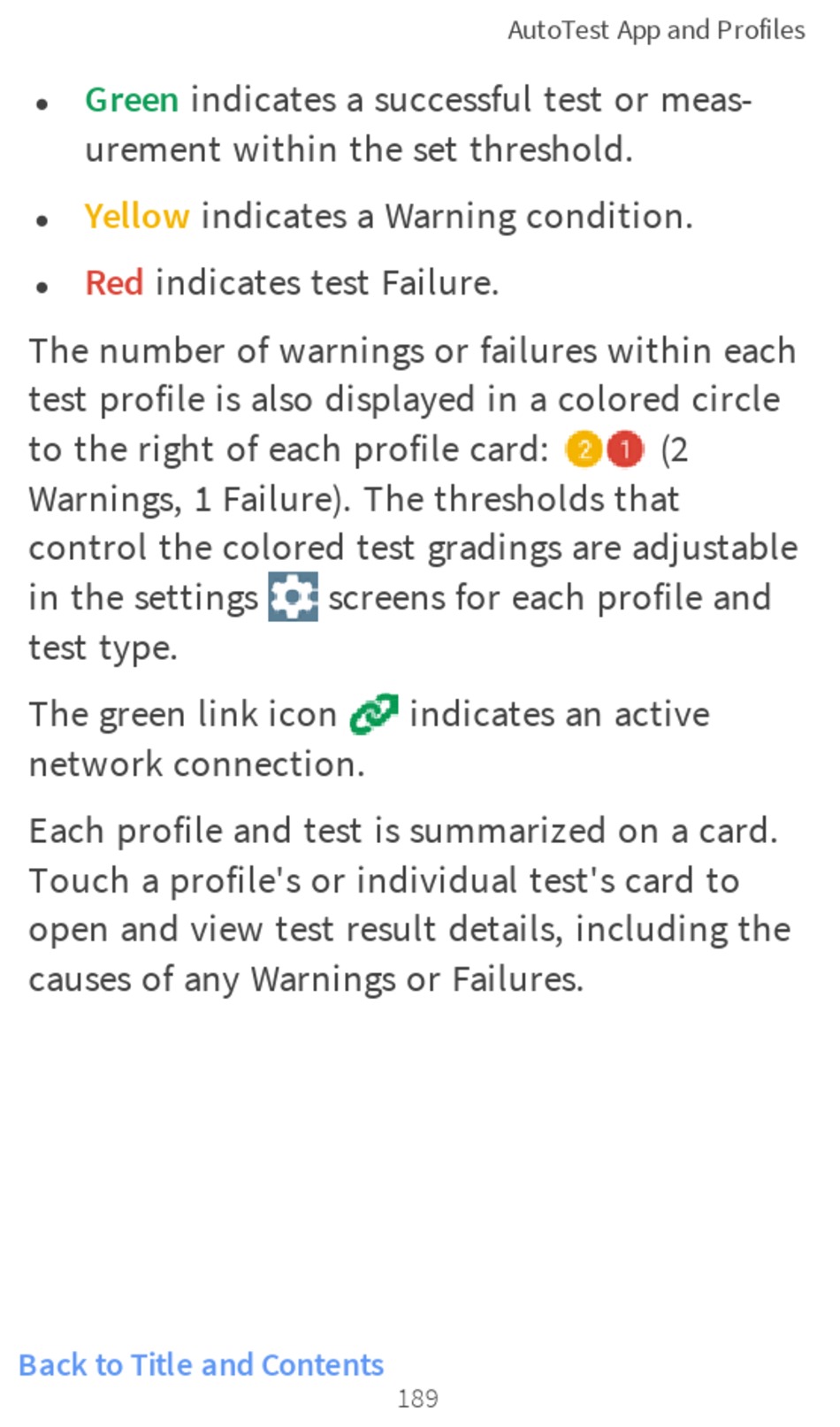

netAlly EtherScope nXG Controlled Edition User Manual page 189

Green
l
urement within the set threshold.
Yellow
l
Red
indicates test Failure.
l
The number of warnings or failures within each
test profile is also displayed in a colored circle
to the right of each profile card:
Warnings, 1 Failure). The thresholds that
control the colored test gradings are adjustable
in the settings
test type.
The green link icon
network connection.
Each profile and test is summarized on a card.
Touch a profile's or individual test's card to
open and view test result details, including the
causes of any Warnings or Failures.
