AutoTest App and Profiles

Target Test Results Screens

The Target Test type icons display green,
yellow, or red to indicate the status (or grade)
of the completed test portions:
Success/Warning/Fail.

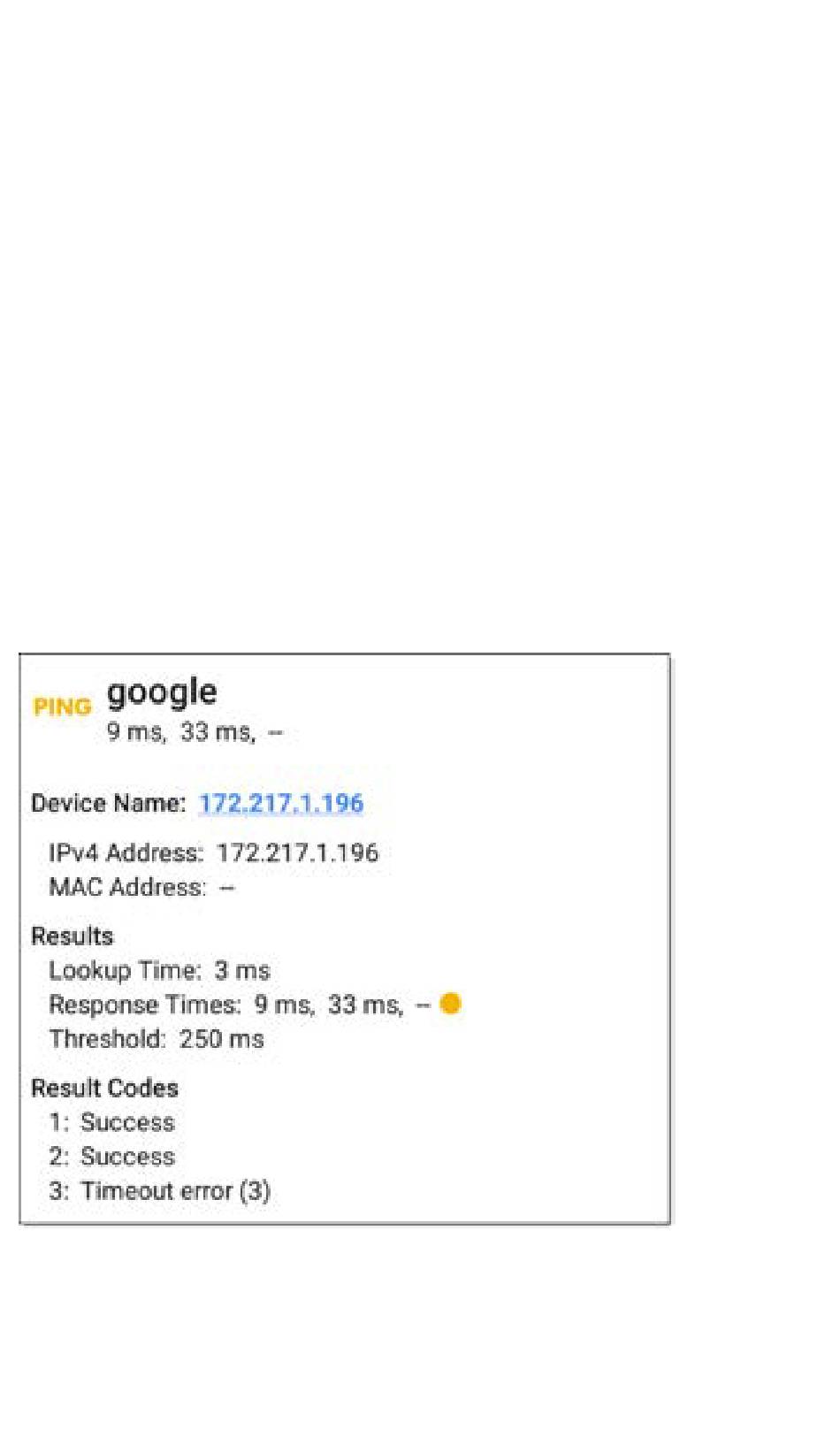

As an example, in the Ping test image below,
the entire Ping test is graded with a Warning
because the third Ping was not returned within
the Timeout Threshold configured in the
settings.
The third Response Time displays two dashes --
to indicate that no response was received, and
323
