Test And Management Ports - netAlly EtherScope nXG Controlled Edition User Manual

General Settings and Tools
Test and Management
Ports

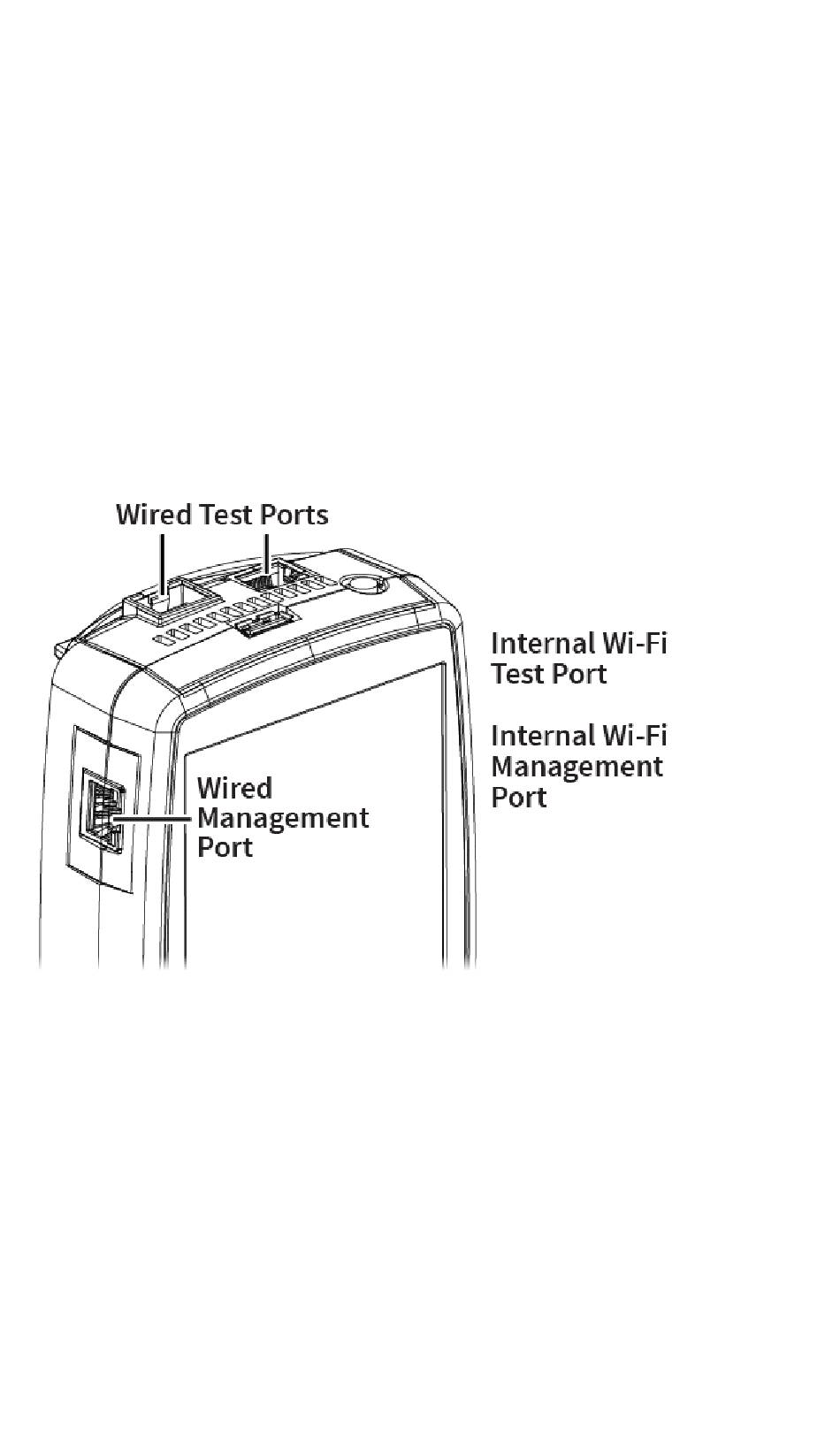

The EtherScope nXG Controlled Edition has
two wired RJ-45 copper ports, a fiber port, and
two Wi-Fi radios, each with specific test or
management functions described in this
section.
Either the top copper port or fiber port can act
as the Wired Test Port, so in total, the
EtherScope has four network interfaces:
1 Wired Test, 2 Wi-Fi Test, 3 Wired Management,
and 4 Wi-Fi Management.
Refer to Buttons and Ports and the technical
Specifications if needed.
66
