AirMapper™ App

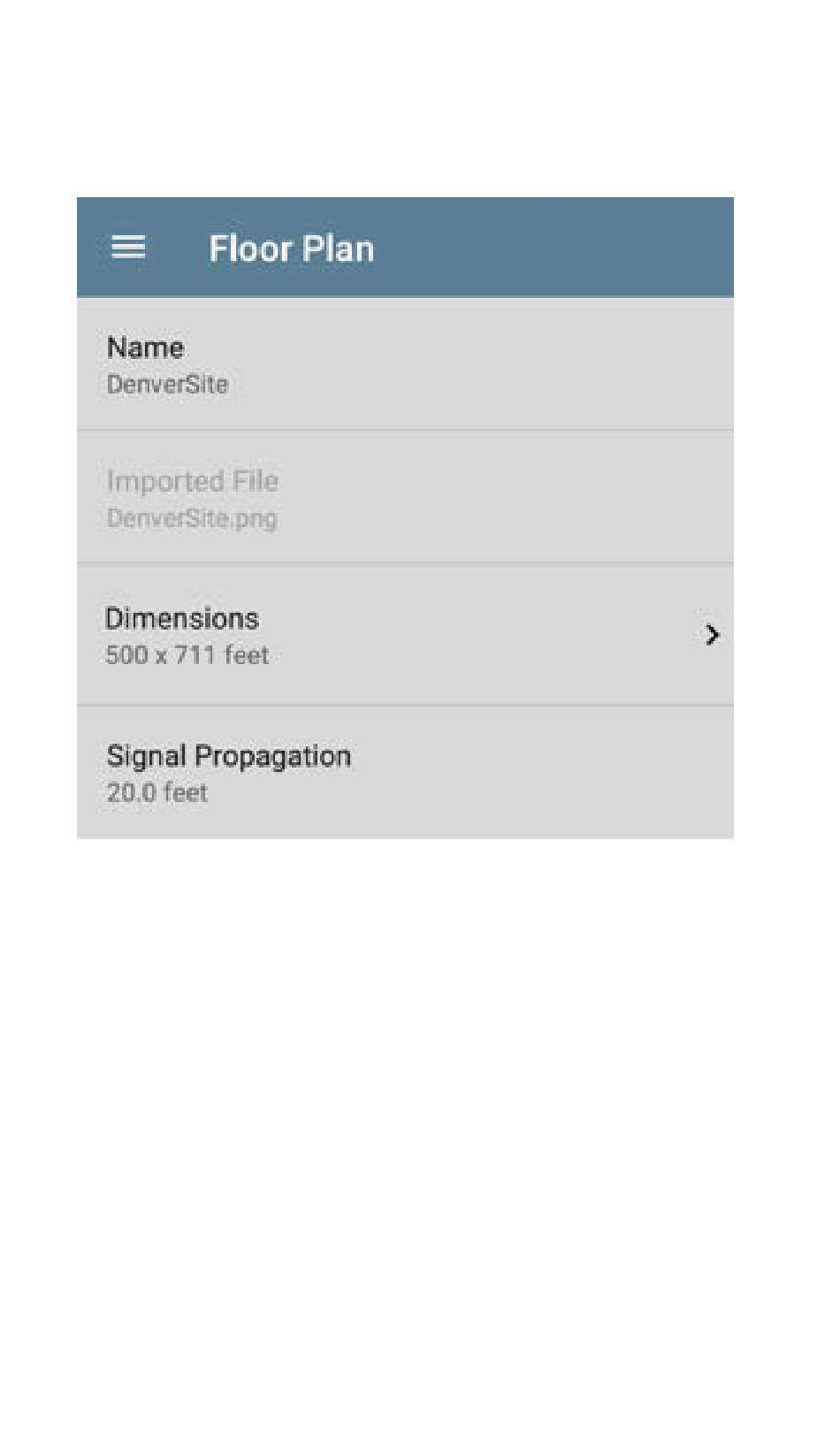

4. Back on the Floor Plan screen, tap the
fields to configure the floor plan.
Name: Enter a name for this floor plan. This
field defaults to the file name.
Imported File: The original image filename
Interactive Calibration: In the Floor Plan
menu pressing on Dimensions allows the
user to interactively calibrate the floorplan
by moving the two indicators to known
locations and entering the corresponding
distance between the two points.
