Open Cable Tdr Testing - netAlly EtherScope nXG Controlled Edition User Manual

Cable Test App
To start the cable test, tap START at the top
right of the Cable Test app screen.

Open Cable TDR Testing

EtherScope nXG Controlled Edition can
measure the length of a cable and detect some
faults by measuring the electrical reflections of
the cable using Time Domain Reflectometry

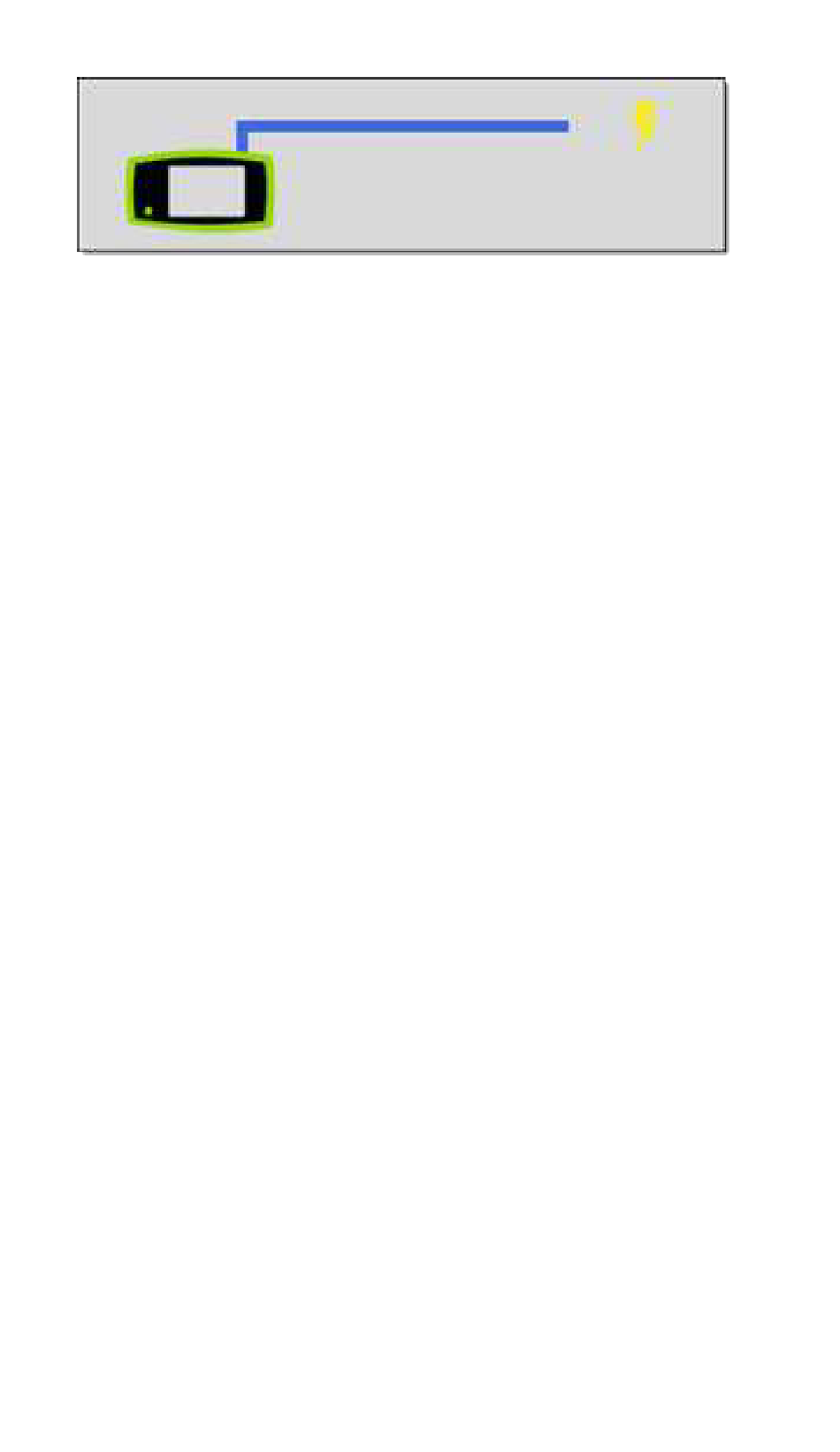

(TDR). Connect an open cable (unterminated)
into the RJ-45 port on the left side of the
EtherScope unit to measure its length and view
any shorts, opens, or splits.
