Performance Test App
Graph Legends

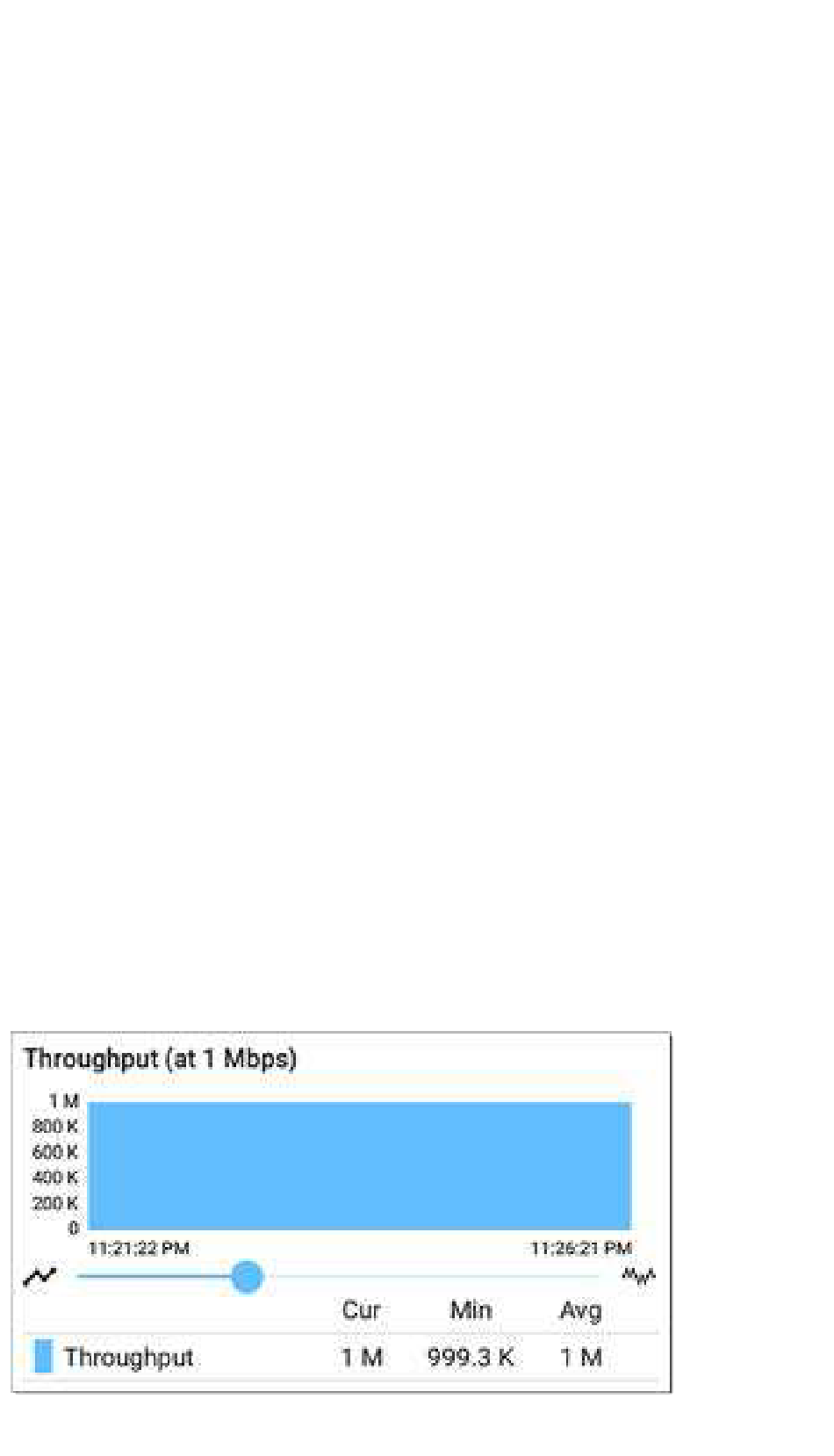

Under each graph, a legend table indicates the
meanings of the colors that correspond to
different measurements. The Limit shown for
each graph is the set Threshold from the cor-
responding Service settings. Measurements that
fall outside the Limit are indicated with a red
dot next to the failing measurement. In the
image above, the test has failed because Frames
Lost Up was above the Limit.
The table also displays the Current, Maximum,
and Average measurements. The Current
columns contain measurements from the last
interval (5 or 30 seconds). The Min, Max, and
Avg columns show cumulative measurements
gathered during the test duration.
Throughput
