AutoTest App and Profiles
Voltage: SFP transceiver power supply voltage
(~3.3 V)
Tx Bias Current: Transmitter bias current
Tx Power: Transmitter power
Rx Power: Link receiver power
Reference Power: The user can set a Reference
Power by pressing the SET REFERENCE button.
This sets the current Rx Power as the reference.
The value is saved until cleared by the CLEAR
REFERENCE button. It is saved across reboots.
Power Difference: The difference between the
current Rx Power and the reference. The
number is positive if the current value is
greater than the reference value.
Results Codes: Final status of the test (Success
or Failure)

802.1X Test Results

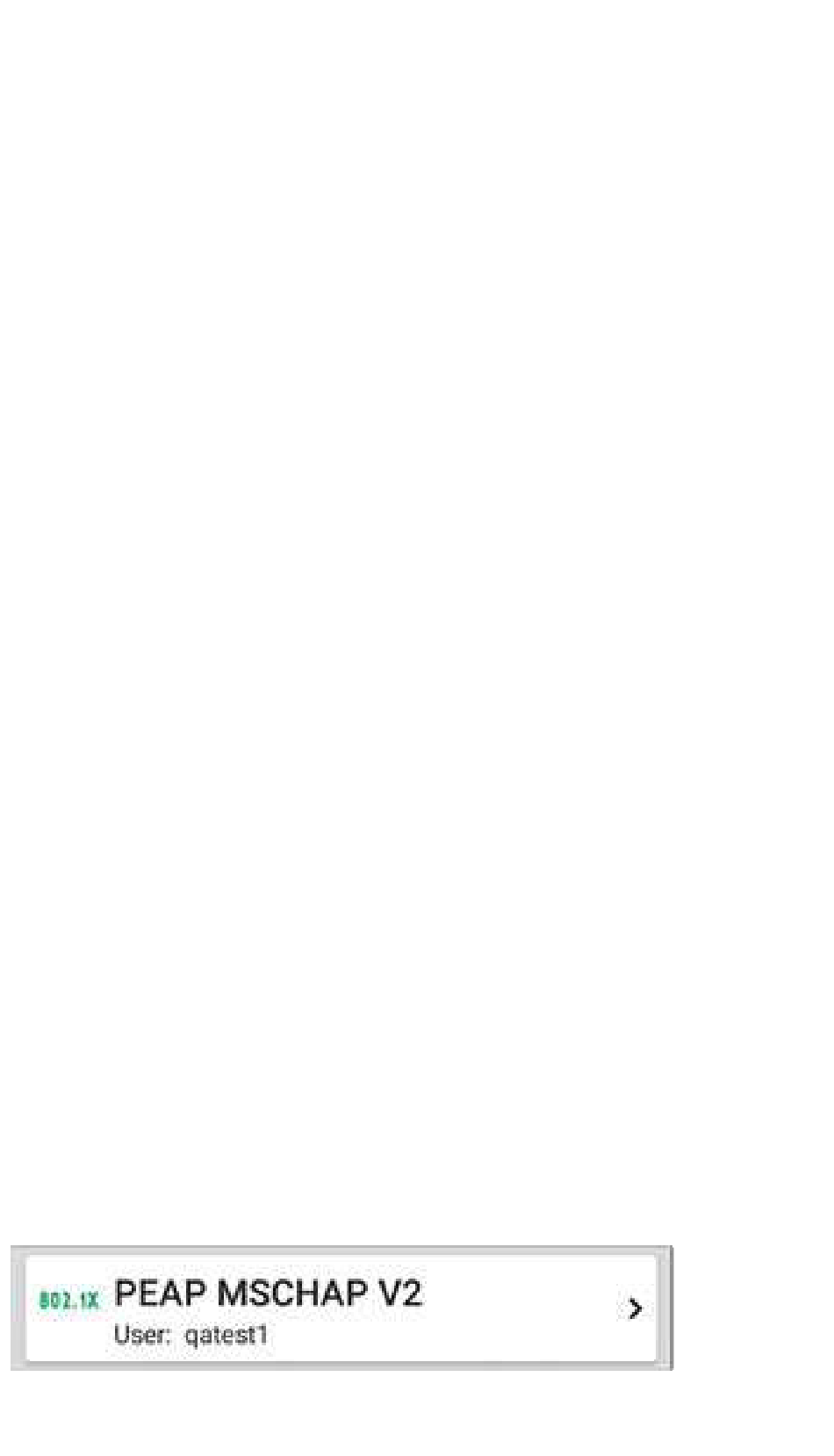

The 802.1X test card only displays if the
802.1X
setting
is enabled in the Wired Profile Settings.
