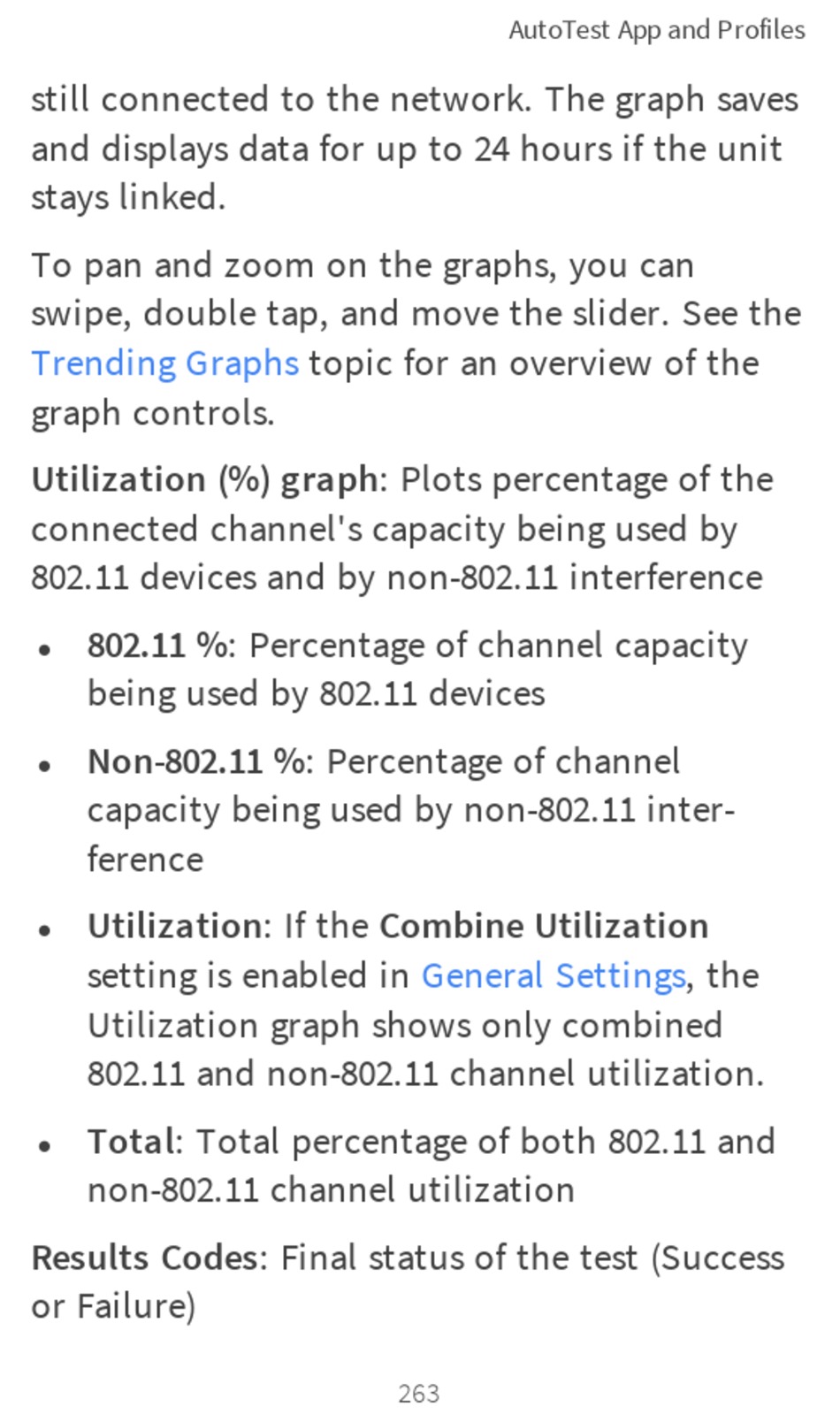

still connected to the network. The graph saves
and displays data for up to 24 hours if the unit
stays linked.
To pan and zoom on the graphs, you can
swipe, double tap, and move the slider. See the
Trending Graphs
graph controls.
Utilization (%) graph: Plots percentage of the
connected channel's capacity being used by
802.11 devices and by non-802.11 interference
802.11 %: Percentage of channel capacity
l
being used by 802.11 devices
Non-802.11 %: Percentage of channel
l
capacity being used by non-802.11 inter-
ference
Utilization: If the Combine Utilization
l
setting is enabled in
Utilization graph shows only combined
802.11 and non-802.11 channel utilization.
Total: Total percentage of both 802.11 and
l
non-802.11 channel utilization
Results Codes: Final status of the test (Success
or Failure)
topic for an overview of the
General
263
AutoTest App and Profiles
Settings, the
