Performance Test App
Throughput (Up/Down) (at Target Rate):
Throughput is the measured bit rate based on
the number of frames sent and frames received.
The configured Target Rate from the
Performance Settings is shown in parentheses
next to the Throughput heading. In the image
above, the configured Target Rate is 1 Mbps.

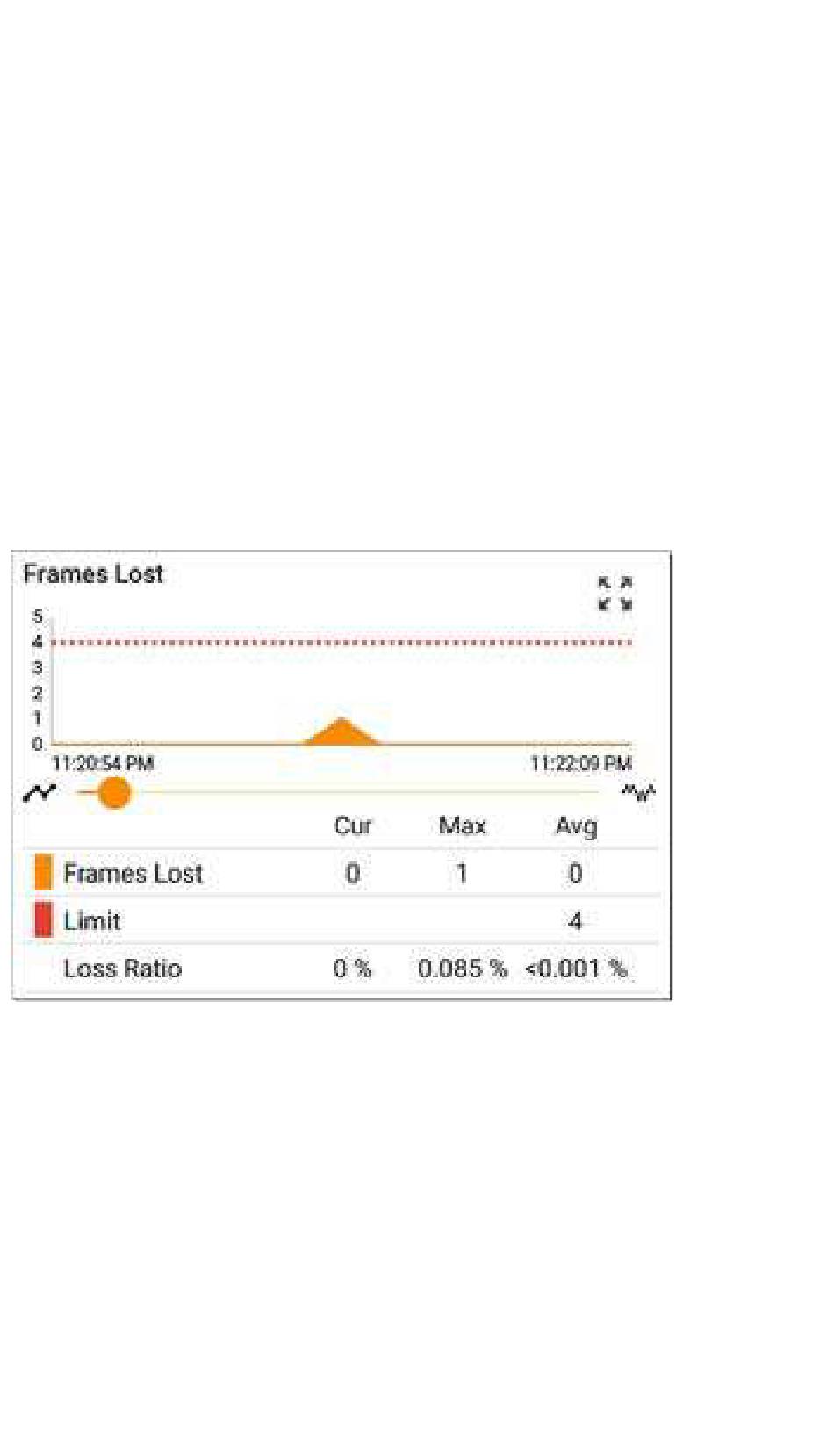

Loss
Frames Lost (Up/Down): Frame loss is
quantified by the number of frames received
subtracted from the number of frames sent.
Limit: This is the Frame Loss Threshold for one
interval. It is computed from the Frame Loss
Threshold, Frame Size, and Bandwidth settings
