Path Analysis App
following cards show the Layer 2 and Layer 3
Hops in the path, which are sequentially
ordered.
blue linked name or address
Touch any in the
Path Analysis results screens to open the
Discovery or Wi-Fi app and further examine the
linked element.
Path Analysis Results and Source
EtherScope Cards

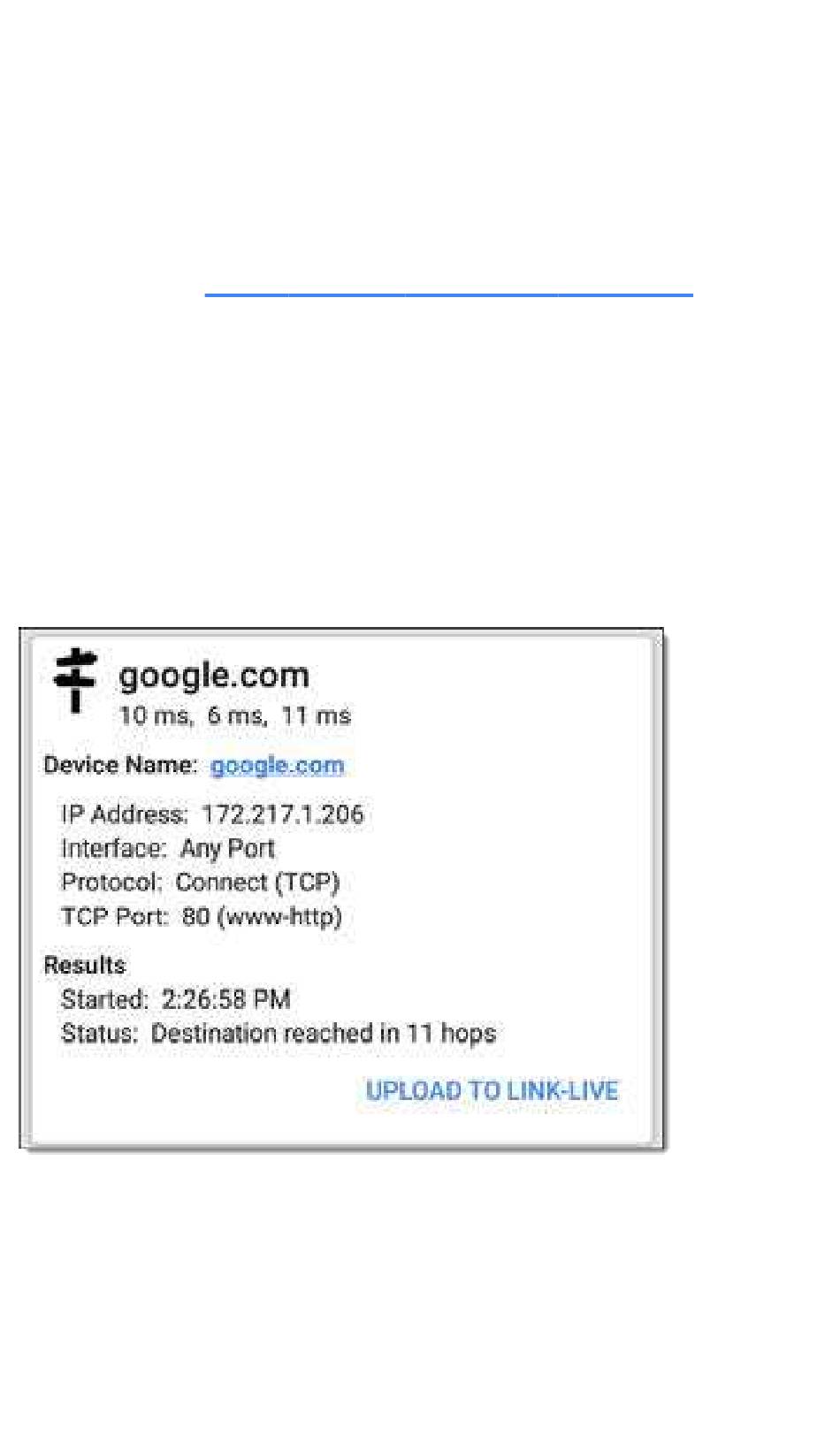

The top Path Analysis results card shows the
path's Destination address at the top, followed
616
