Layer 3 Hops - netAlly EtherScope nXG Controlled Edition User Manual

Path Analysis App
Beneath the EtherScope source card, the Hop
cards show Layer 2 and Layer 3 devices
determined to be in the Path.

Layer 3 Hops

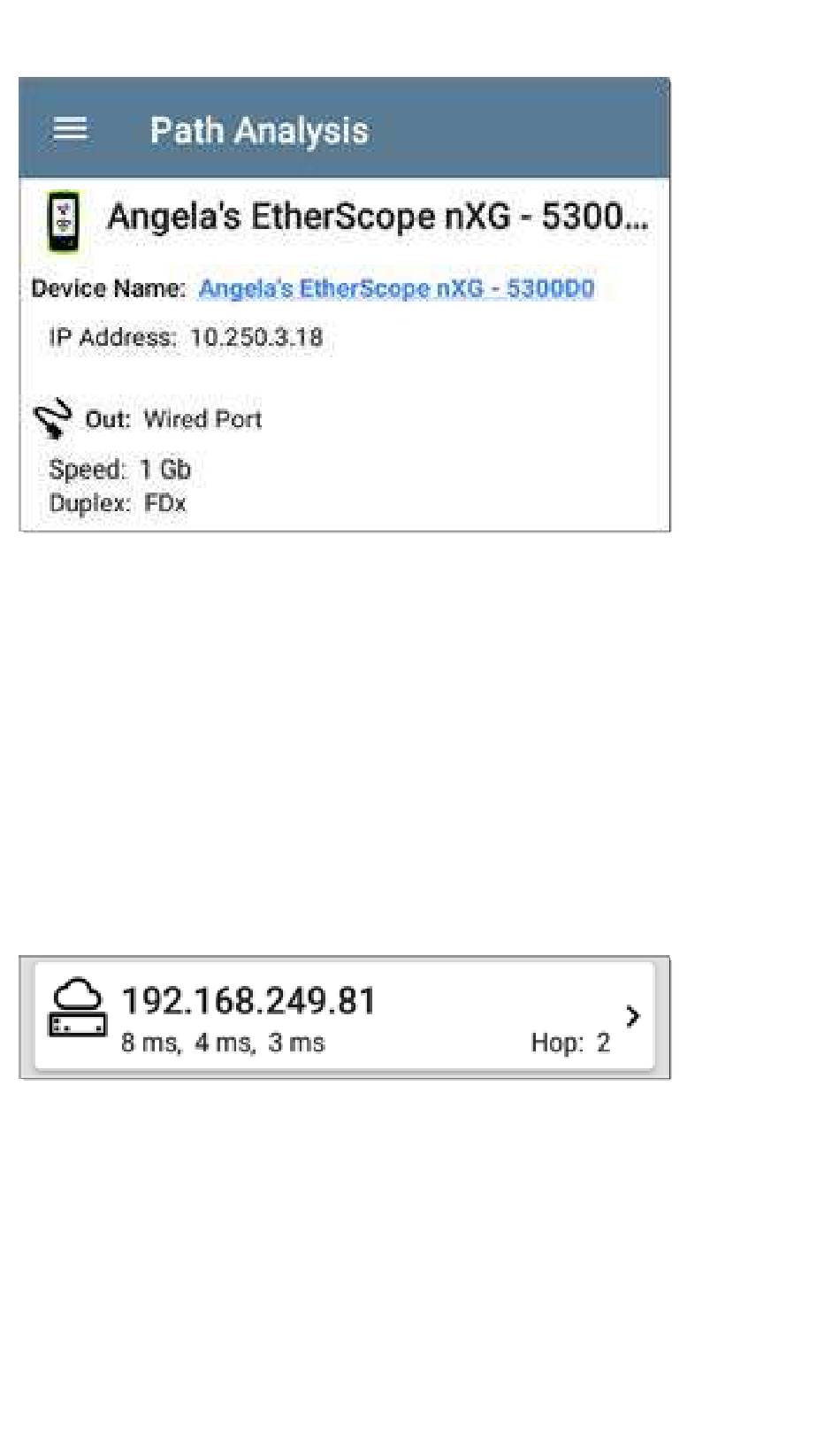

Each Layer 3 Hop card displays the device type
icon, DNS name (if discovered), and IP address.
Beneath the name (or IP), the response times
for each Connect (TCP), Ping (ICMP), or Echo
(UDP/7) display in milliseconds. On the right
side is the router Hop number of this device in
the path.
