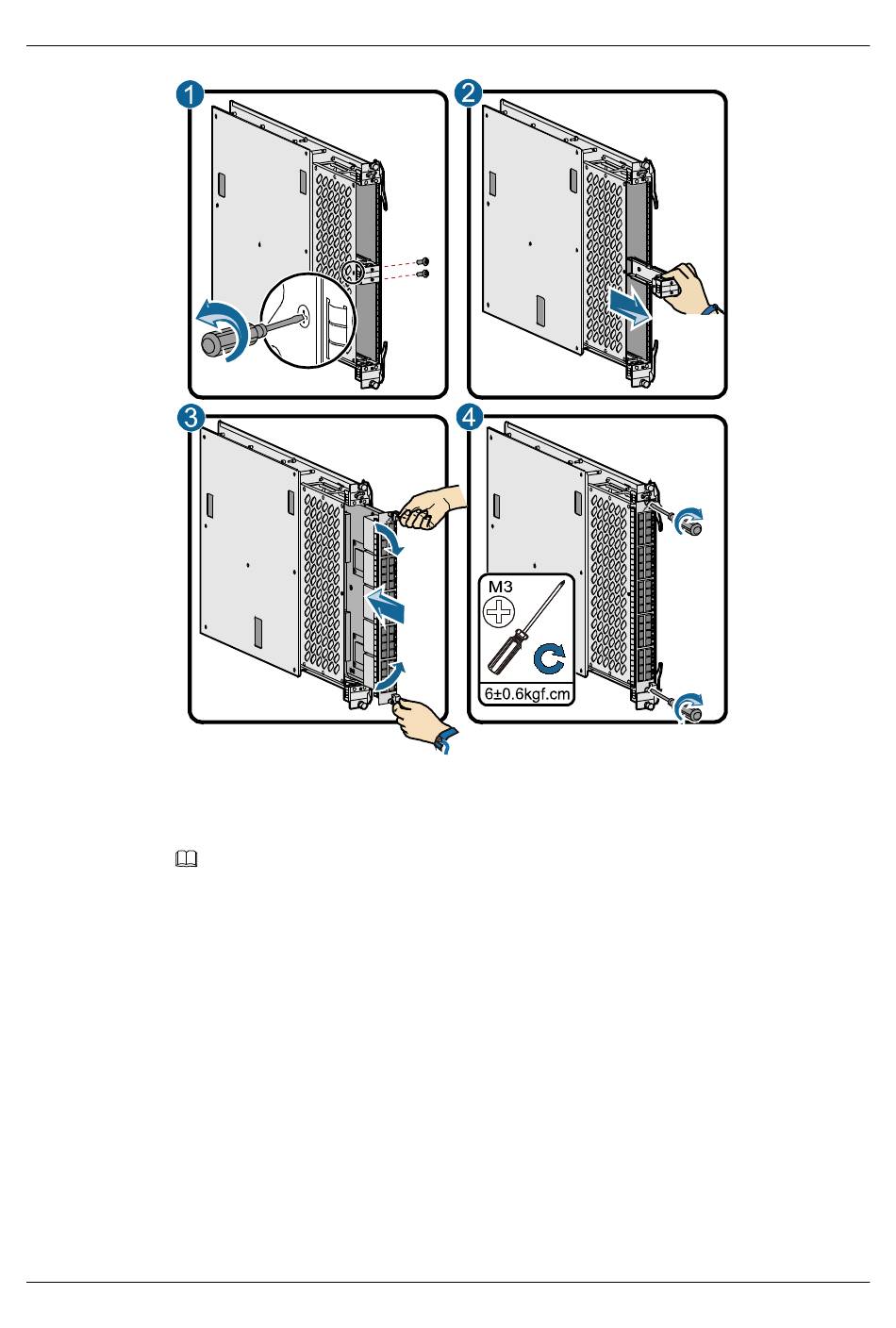

4.4 Laying Out Network Cables
Affix the labels to the network cable at 20 mm away from the connectors at both ends. The
number of network cables bound to a bundle should not be more than 20. Bind the network
cables in the cabinet to rectangles. Fix the network cables on the fiber bundlers. Bind the network
cables with a cable tie every 200 mm. The wire clip must be tidy and in the same direction after
the network cables are bound.
Issue 02 (2011-09-10)
NOTE
The layout modes of network cables includes upward cabling and downward cabling. The following
introduces the upward cabling.
