l Make sure that you attach engineering labels at both ends of a power cable.
l For a horizontal cable, the label should be attached above the cable. For a vertical cable, the
----End
3.5.2 Labeling Signal Cables
This section describes how to label signal cables. Signal cables mentioned in this section refer
to external alarm cables, Ethernet cables, fiber cables, and trunk cables (excluding antennas and
feeders).
Procedure

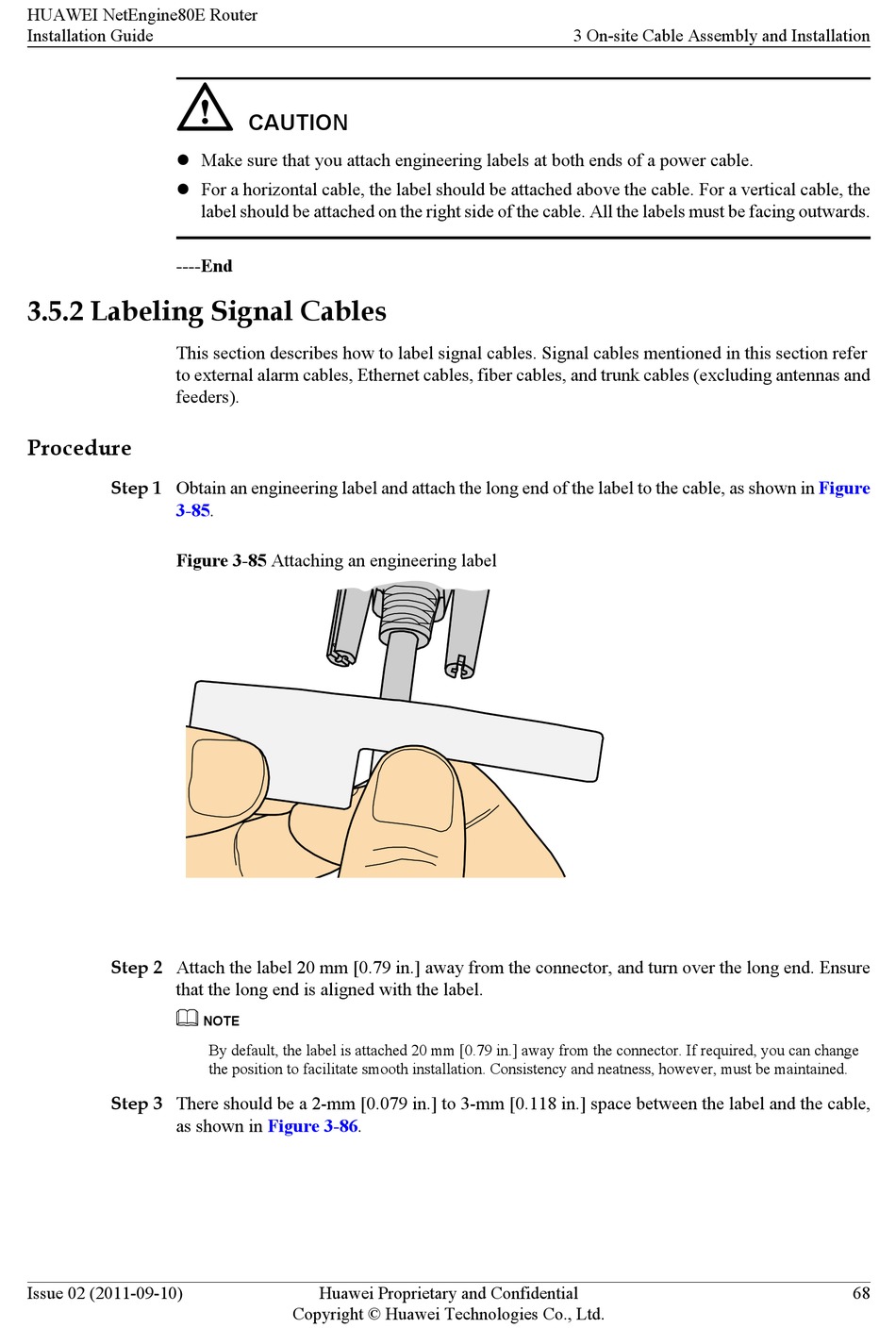

Step 1 Obtain an engineering label and attach the long end of the label to the cable, as shown in
3-85.
Figure 3-85 Attaching an engineering label
Step 2 Attach the label 20 mm [0.79 in.] away from the connector, and turn over the long end. Ensure
that the long end is aligned with the label.
Step 3 There should be a 2-mm [0.079 in.] to 3-mm [0.118 in.] space between the label and the cable,
as shown in
Issue 02 (2011-09-10)
CAUTION
label should be attached on the right side of the cable. All the labels must be facing outwards.
NOTE
By default, the label is attached 20 mm [0.79 in.] away from the connector. If required, you can change
the position to facilitate smooth installation. Consistency and neatness, however, must be maintained.
Figure 3-86.
