HUAWEI NetEngine80E Router
Installation Guide

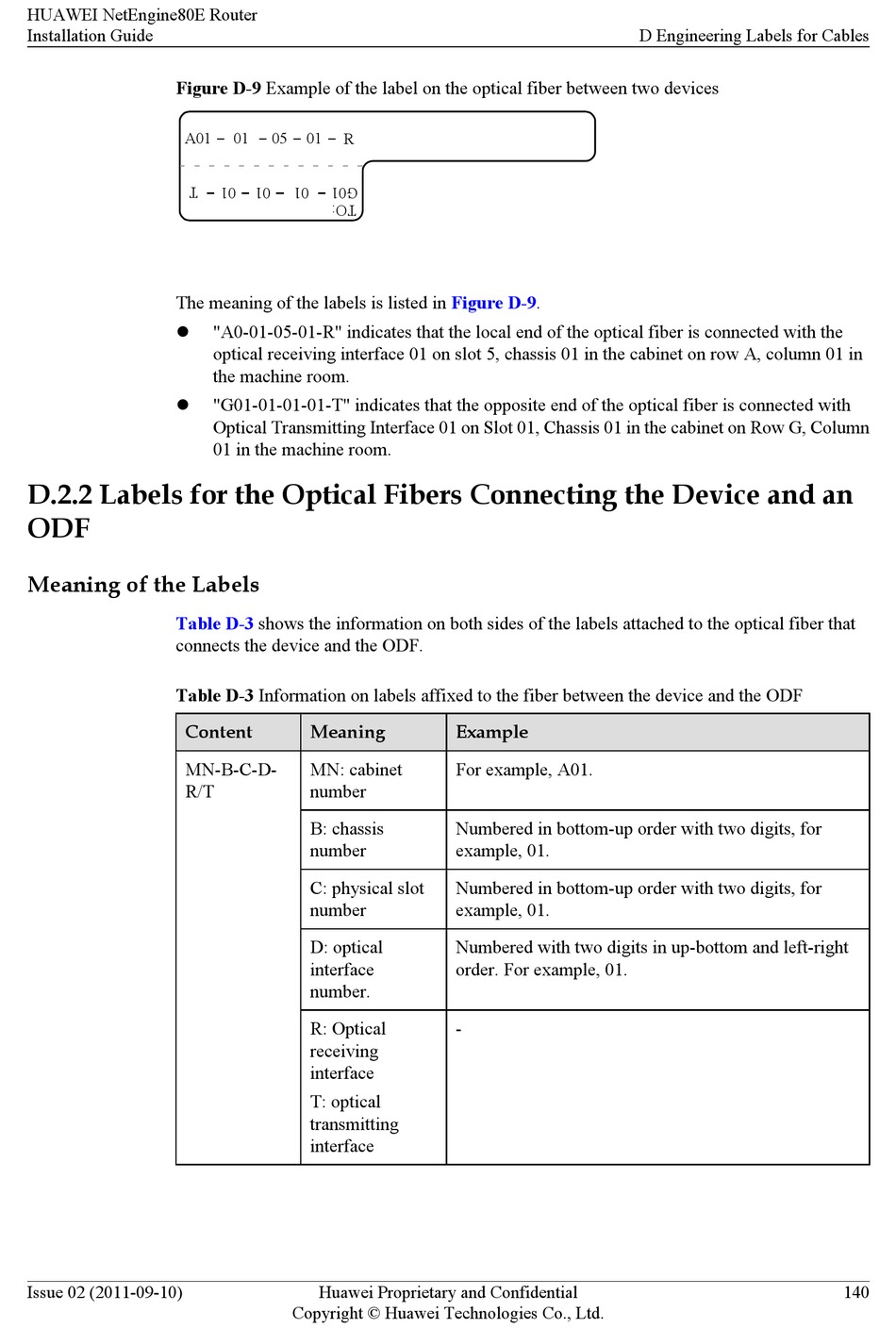

Figure D-9 Example of the label on the optical fiber between two devices
A01
The meaning of the labels is listed in
l
l
D.2.2 Labels for the Optical Fibers Connecting the Device and an
ODF
Meaning of the Labels
Table D-3
connects the device and the ODF.
Table D-3 Information on labels affixed to the fiber between the device and the ODF
Content
MN-B-C-D-
R/T
Issue 02 (2011-09-10)
01 05 01 R
"A0-01-05-01-R" indicates that the local end of the optical fiber is connected with the
optical receiving interface 01 on slot 5, chassis 01 in the cabinet on row A, column 01 in
the machine room.
"G01-01-01-01-T" indicates that the opposite end of the optical fiber is connected with
Optical Transmitting Interface 01 on Slot 01, Chassis 01 in the cabinet on Row G, Column
01 in the machine room.
shows the information on both sides of the labels attached to the optical fiber that
Meaning
MN: cabinet
number
B: chassis
number
C: physical slot
number
D: optical
interface
number.
R: Optical
receiving
interface
T: optical
transmitting
interface
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
Figure D-9.
Example
For example, A01.
Numbered in bottom-up order with two digits, for
example, 01.
Numbered in bottom-up order with two digits, for
example, 01.
Numbered with two digits in up-bottom and left-right
order. For example, 01.
-
D Engineering Labels for Cables
