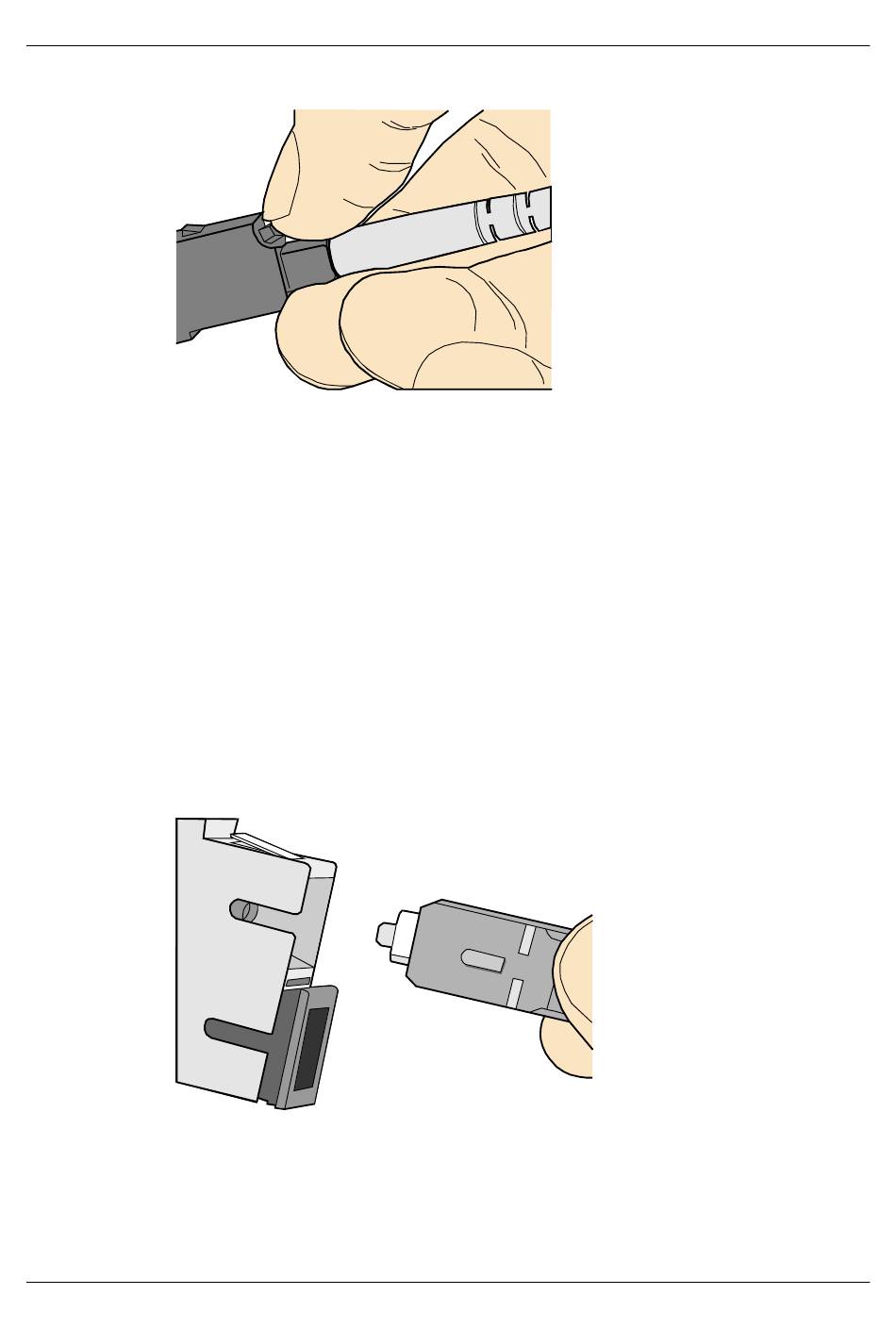

Figure 3-68 Disassembling an LC fiber connector
----End
Installing the SC Fiber Connector
This section describes how to install an SC fiber connector.
Procedure
Step 1 Remove the dustproof cap of the SC fiber connector and store it for future use.
Step 2 Align the core pin of the male connector with that of the female connector, as shown in
3-69.
Figure 3-69 Aligning the male connector with the female connector
Step 3 Feed the male connector into the female connector until you hear a clicking sound. The male
and female connectors are securely installed, as shown in
Issue 02 (2011-09-10) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
3 On-site Cable Assembly and Installation
Figure 3-70.
Figure
