Connector Specifications

Connector Specifications
This section lists Prego connector details.

Power Connector

The power connector (Figure B-1) is a sealed receptacle, 5 pin connector
with ODU part number G80F1C-T05QF00-0000.
Table B-2 gives power connector specifications.
Number
1
2
3
4
5
B-8 Prego Operator's Manual

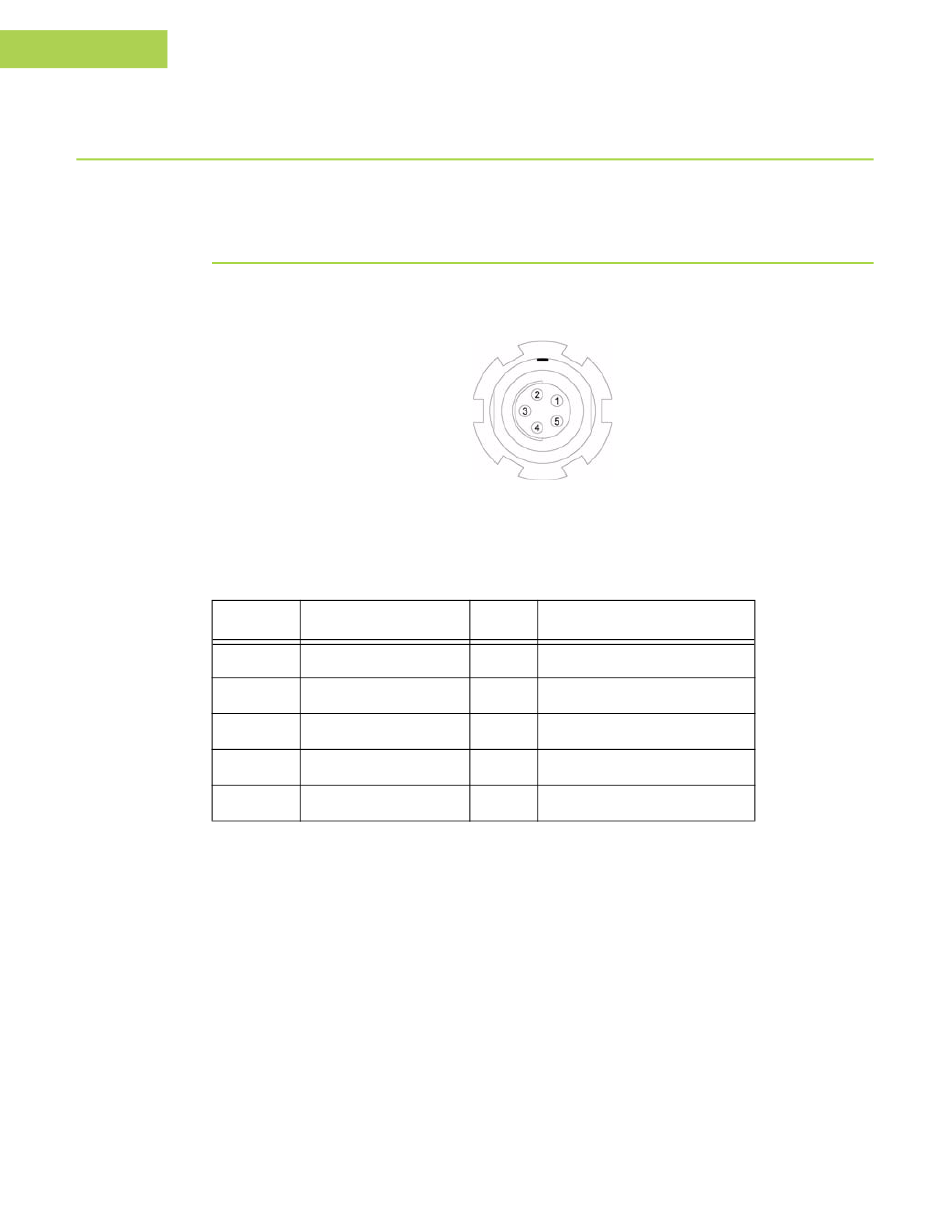

Figure B-1. Power Connector
Table B-2. Power Connector Specifications
Signal Name
Power_INP P
Power_INP P
Power_GND P
Power_GND P
Dir Details
6 to 28 volts DC input
6 to 28 volts DC input
Ground, power return
Ground, power return
Not used
