MinPad Configuration

MinPad Configuration
The Prego simple user interface (MinPad) consists of two keys (Power and FN)
and two LEDs (STAT and REC) that control and display the receiver's
operation (Figure 2-32).
The MinPad has one Status (STAT) LED and one Recording (REC) LED. Each
LED has three colors: red, green, and orange. The MinPad also has an ON/OFF
key (PWR) and a function key (FN), as well as protection against stuck keys
(e.g., when a key is held down unintentionally for a long time by other objects
in a backpack).
The MinPad allows the user to perform various functions:
• Turn the receiver On or Off, put it in Sleep mode or Zero power mode.
• Turn data recording On or Off (FN key).
• Show the number of GPS (green) and GLONASS (orange) satellites being
tracked (STAT LED).
• Show data recording status (REC LED).
• Show each time data is recorded to internal memory (REC LED).
• Show the status of post-processing mode (static or dynamic), during a Post-
Processing Kinematic measuring, using the FN key (REC LED).
• Allow changing the receiver's information mode.
You use PCView to configure MinPad settings. Refer to the PCView User's
Manual for other possible MinPad configurations.
1. Connect your receiver and computer. See "Connecting the Prego and a
Computer" on page 2-4 for this procedure.
AND
Enable RTS/CTS handshaking (Figure 2-33 on page 2-25).
2-24 Prego Operator's Manual

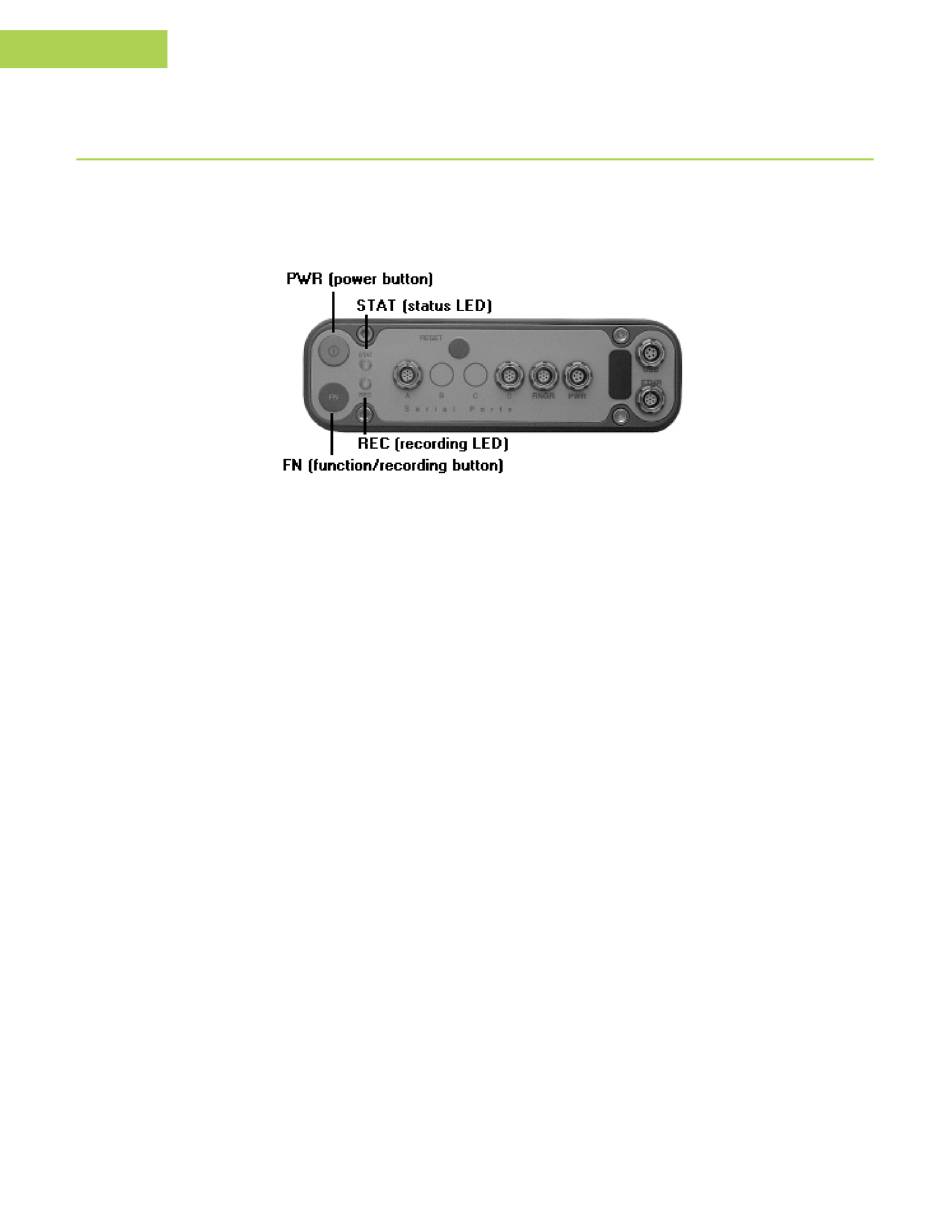

Figure 2-32. MinPad
