Receiver Configuration - Positioning - Javad Prego Operator's Manual

www.javad.com
10.Select the Positioning tab and set the Position Masks, Elevation
mask parameter to 15 (Figure 3-10).

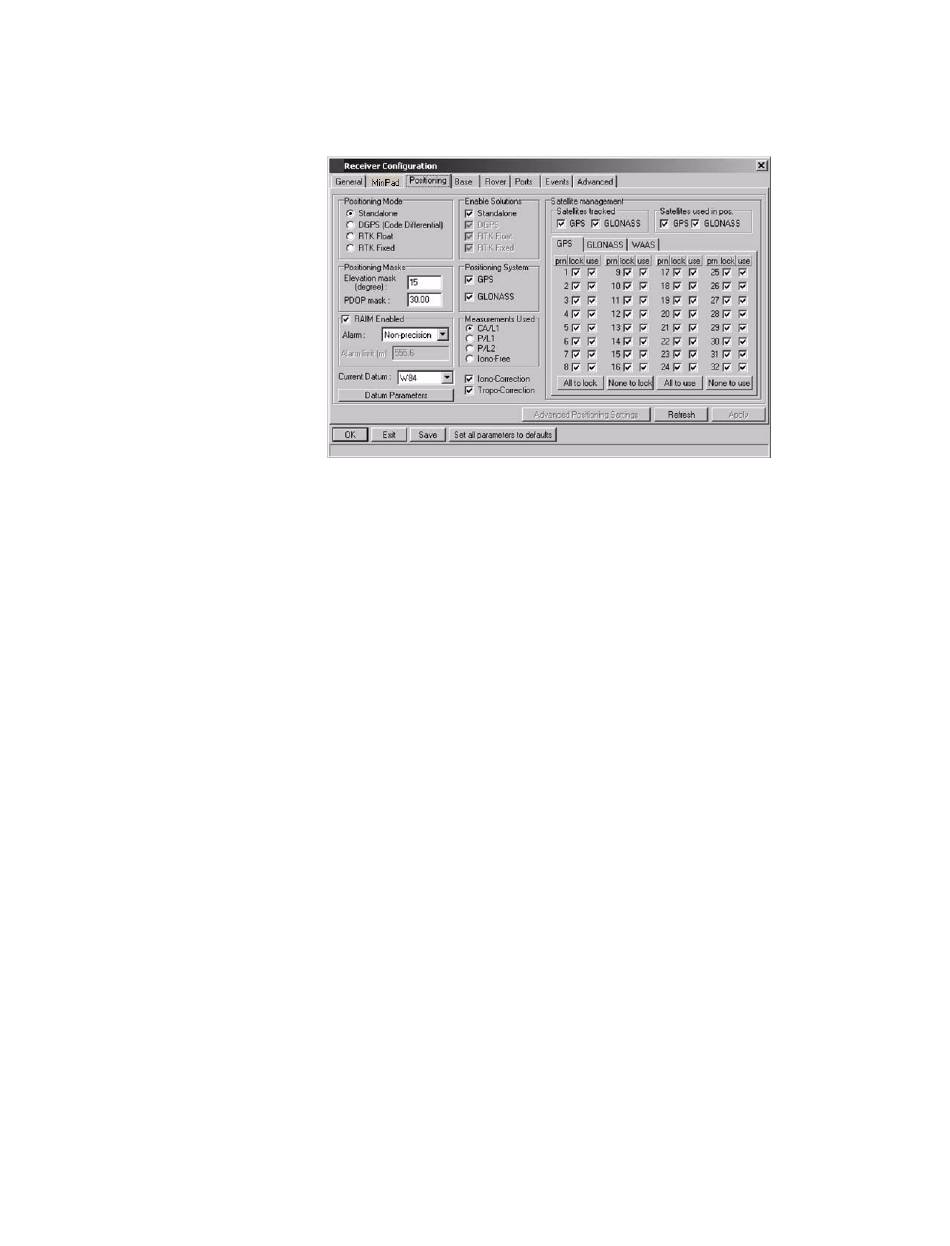

Figure 3-10. Receiver Configuration – Positioning
11.Select the Base tab and set the following parameters (Figure 3-11 on
page 3-16):
• GPS/GLO at one time – enable
• Antenna position – enter Lat, Lon, and Alt values.
OR
Click Get from receiver.
OR
Select Averaged and enter the Averaged Span in seconds, then click
Apply. Click Tools->Reset receiver and wait until the specified
interval (span) completes. Examine the Base coordinates on the
Base tab, they should correspond to the coordinates obtained from
the average. Click Refresh if the coordinates are zeros.
S E T U P A N D M E A S U R I N G
Measuring with the Prego
Prego Operator's Manual 3-15
