Charging Internal Batteries - Javad Prego Operator's Manual

C O N F I G U R A T I O N
2
Prego Configuration
9. Select and check the Enable Low Power Mode check box to put the
10. Click Apply.

Charging Internal Batteries

2-14 Prego Operator's Manual
receiver's processor into low power consumption mode (Figure 2-18).

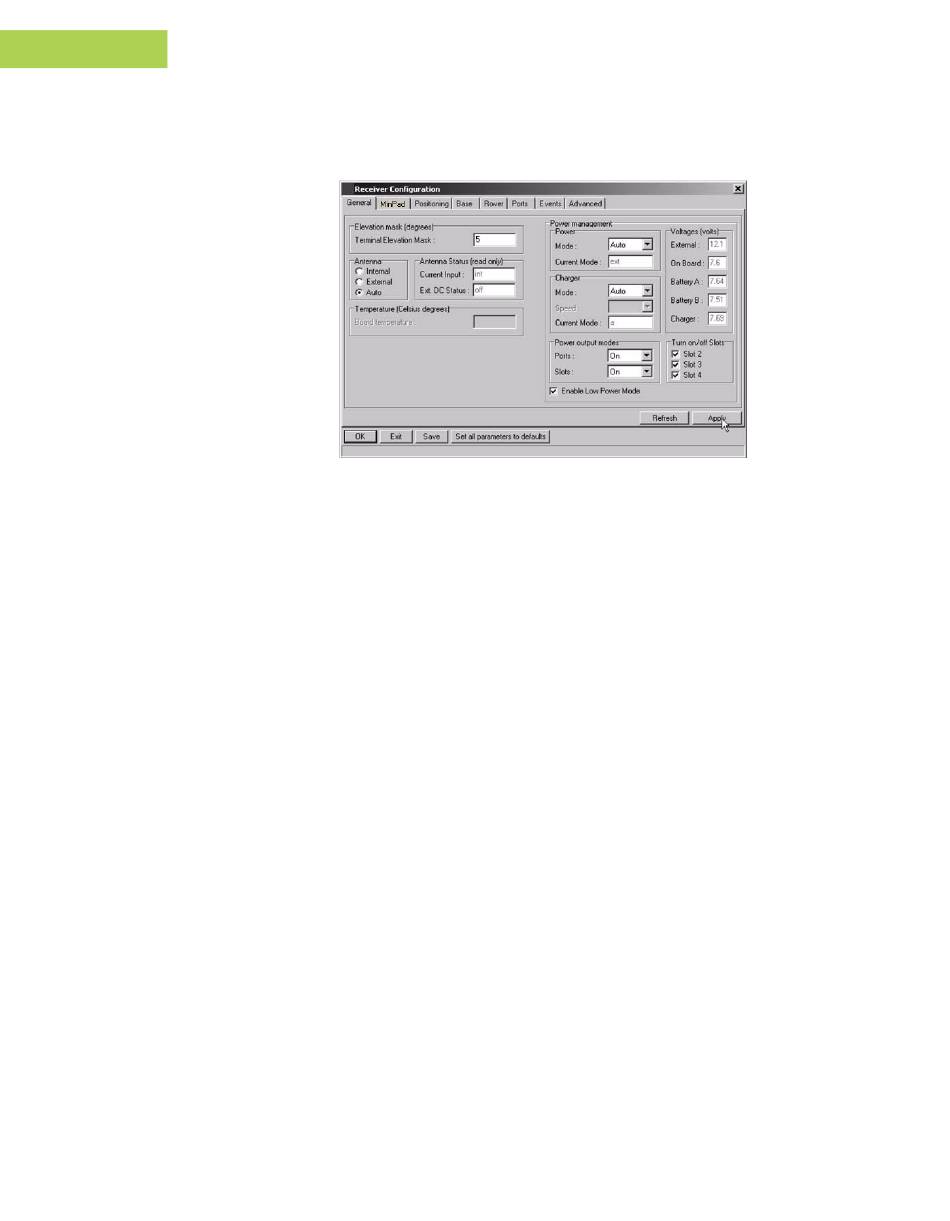

Figure 2-18. Enable and Apply Power Settings
Use one of the following conditions for maximum battery charge speed.
• Both the receiver and controller are turned off. Power Mode and
Charger Mode are set to Auto. See "Power Management" on
page 2-10 for setting these parameters.
• The receiver or the on-board controller is turned on. Power Mode is
set to External and Charger Mode is set to Auto.
1.Plug the power/charger cable into the power input port.
2.Plug the power/charger cable into an available outlet.
3.Press the Reset key on the receiver. This will ensure that the receiver
is in Normal mode for charging. The receiver will not charge in Zero
Power Mode (see "Zero Power Mode" on page 4-20 for more
information).
4.Leave overnight. An eight-hour charge will charge the batteries about
90%. A ten-hour charge will fully charge the receiver. The internal
batteries cannot be overcharged.
5.When finished charging, set Power Mode to Auto.
