C O N F I G U R A T I O N
2
Radio Configuration
Once connected, click on File->Manual Mode to create a daisy chain
1.
between the receiver's port (A or D) and the Prego PDL modem.
Write each of the following commands, pressing Enter (or clicking Send
2.
command) after each command (Figure 2-20 on page 2-17).
• %%set,dev/ser/c/rate,38400
• %%set,dev/ser/c/echo,/cur/term
• %%set,dev/ser/c/imode,echo
• %%set,cur/term/eoff,QUIT
• %%set,cur/term/echo,/dev/null
• %%set,cur/term/imode,echo
• %%set,cur/term/echo,/dev/ser/c
The Manual Mode screen will show RE002%% in response to each of these
commands. When finished, you should have seven responses (Figure 2-20
on page 2-17).
Tip: Save this set of commands to a script file
and load this file later to the receiver with a
single operation. To create a script file, see
Appendix A on page B- 1.
2-16 Prego Operator's Manual

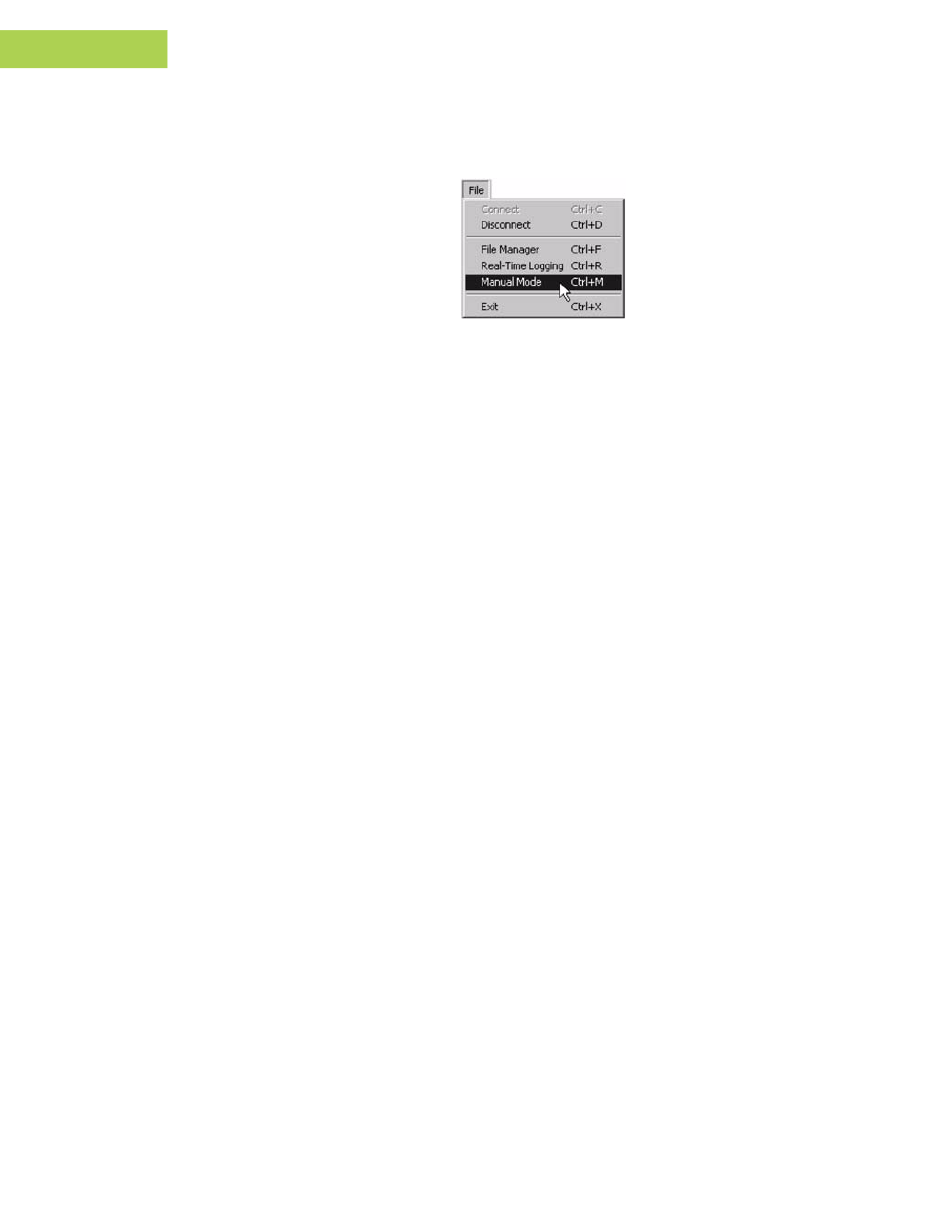

Figure 2-19. File->Manual Mode
