Ethr Connector - Javad Prego Operator's Manual

A P P E N D I X
B
Connector Specifications
Number
2
3
4
5

ETHR Connector

The ETHR connector (Figure B-5) is a sealed receptacle, 7 pin connector
with ODU part number G80F1C-T07QC00-0000.
Table B-9 gives the ETHR connector specifications.
Number
1
2
3
4
5
6
7
B-12 Prego Operator's Manual
Table B-8. USB Connector Specifications
Signal Name Dir
USB_PWR P
GND -
USB D+ I/O
USB D- I/O

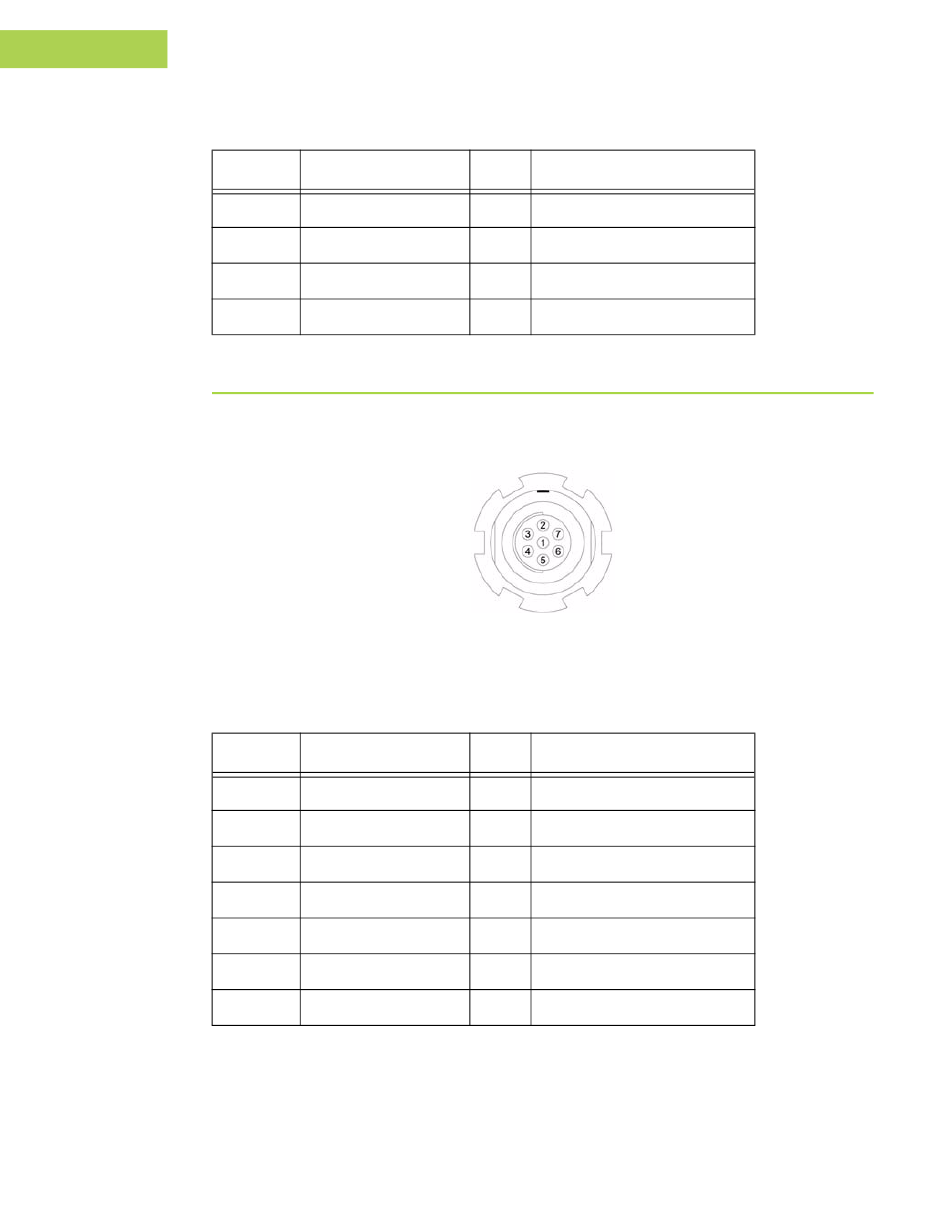

Figure B-5. ETHR Connector
Table B-9. ETHR Connector Specifications
Signal Name Dir
GND -
TXD+ O
TXD- O
RXD+ I
RXD- I
LINKLED O
Details
Bus power
Ground
Data plus
Data minus
Details
Not used
Ground (Link LED cathode)
Transmit data plus
Transmit data minus
Receive data plus
Receive data minus
Link LED anode
www.javad.com
