Prego Configuration; Connection Parameters - Javad Prego Operator's Manual

C O N F I G U R A T I O N
2

Prego Configuration

• Set the communication rate between the receiver and the computer (usually
115200) from the Baud rate drop-down list.
Once a connection has been established, the COM port and baud rate will be
displayed in the lower-left corner of the main window of PCView. A timer will
begin to count up in the lower-right corner as well (Figure 2-4).
Prego Configuration
You use PCView to configure the various parts of the
Prego receiver. Any settings you make using PCView will be saved in the Prego
receiver's memory, and will be reflected when you use the MinPad. You can
change the receiver's configuration in the field using the integrated Windows®
CE controller and controller software.
Tip: Refer to the PCView User's Manual to manage all
possible Prego receiver configurations.
2-6 Prego Operator's Manual

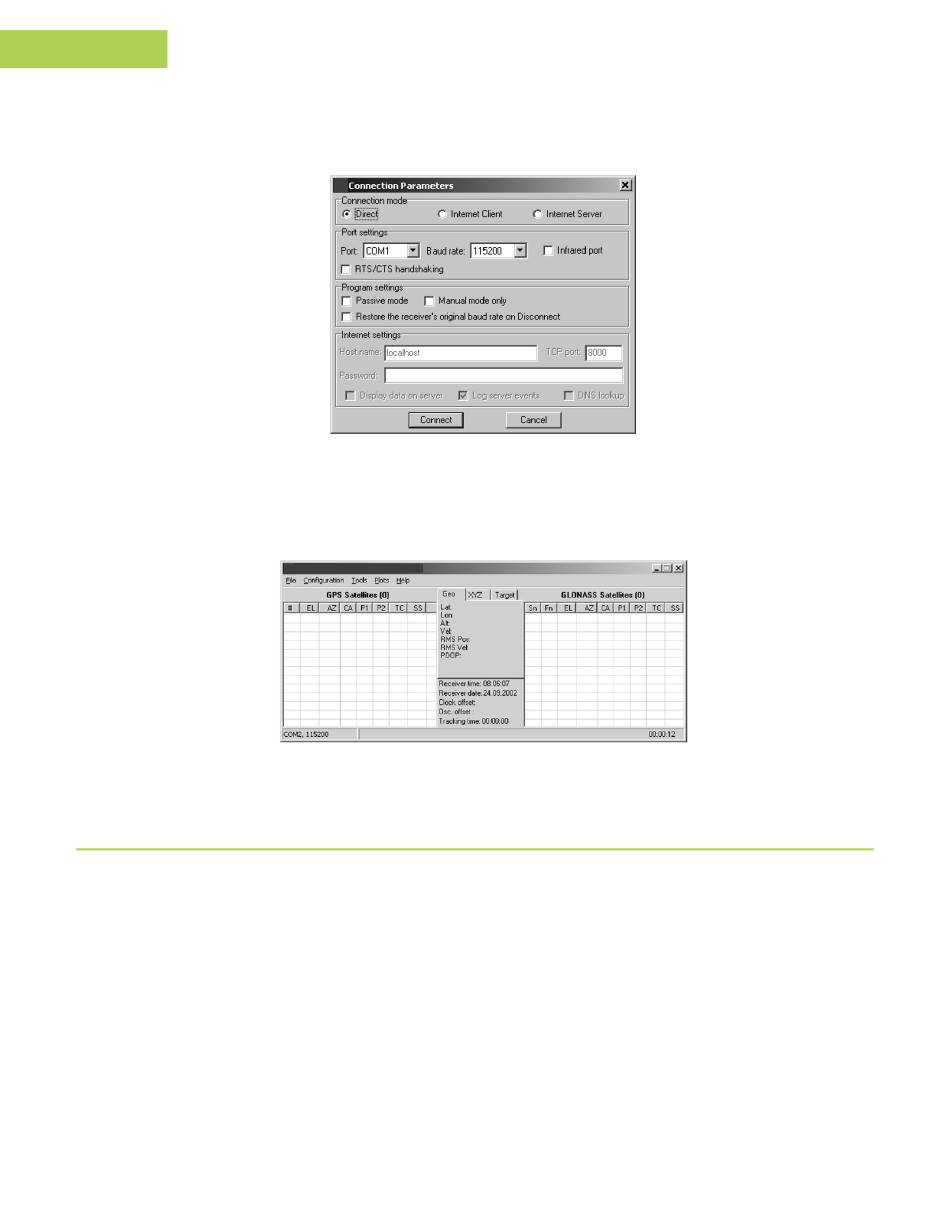

Figure 2-3. Connection Parameters
Figure 2-4. PCView Connection Established
www.javad.com
