The following configuration is recommended for the most common
applications. However, you can select the configuration parameters as needed
for each job.
Notice: Click Apply after making any configuration change, otherwise your
receiver will not accept the change.
1. Connect your receiver and computer. See "Connecting the Prego and a
1.
2.
• Set the Recording interval in seconds.
• Set the Elevation mask for Log file angle in degrees.
• Enter the File name prefix. Use the last three digits of the receiver serial
www.javad.com
Computer" on page 2-4 for this procedure.
Once connected, click on Configuration->Receiver (Figure 2-5).
The Receiver Configuration dialog box displays (Figure 2-6).
Click the MinPad tab, configure the following settings, and click Apply
(Figure 2-7 on page 2-8):
number.

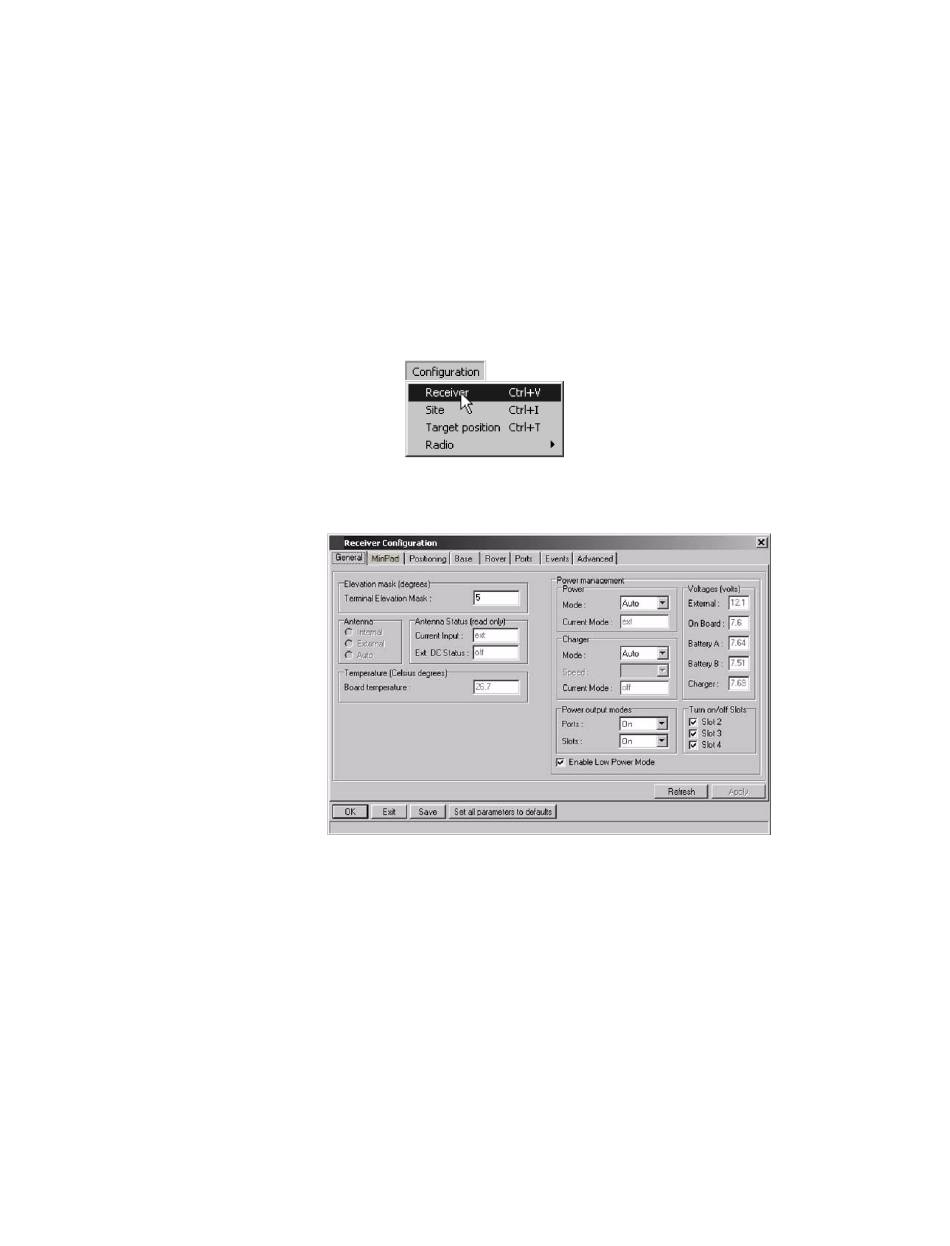

Figure 2-5. Configuration->Receiver
Figure 2-6. Receiver Configuration
