A P P E N D I X
B
Specifications

Connector Specifications

This sections list LGG100 connector details.

Power Connector

B-4 LGG100 Operator's Manual
The power connector (Figure B-1) is a sealed receptacle, 5 pin, ODU p/
n G80F1C-T05QF00-0000.

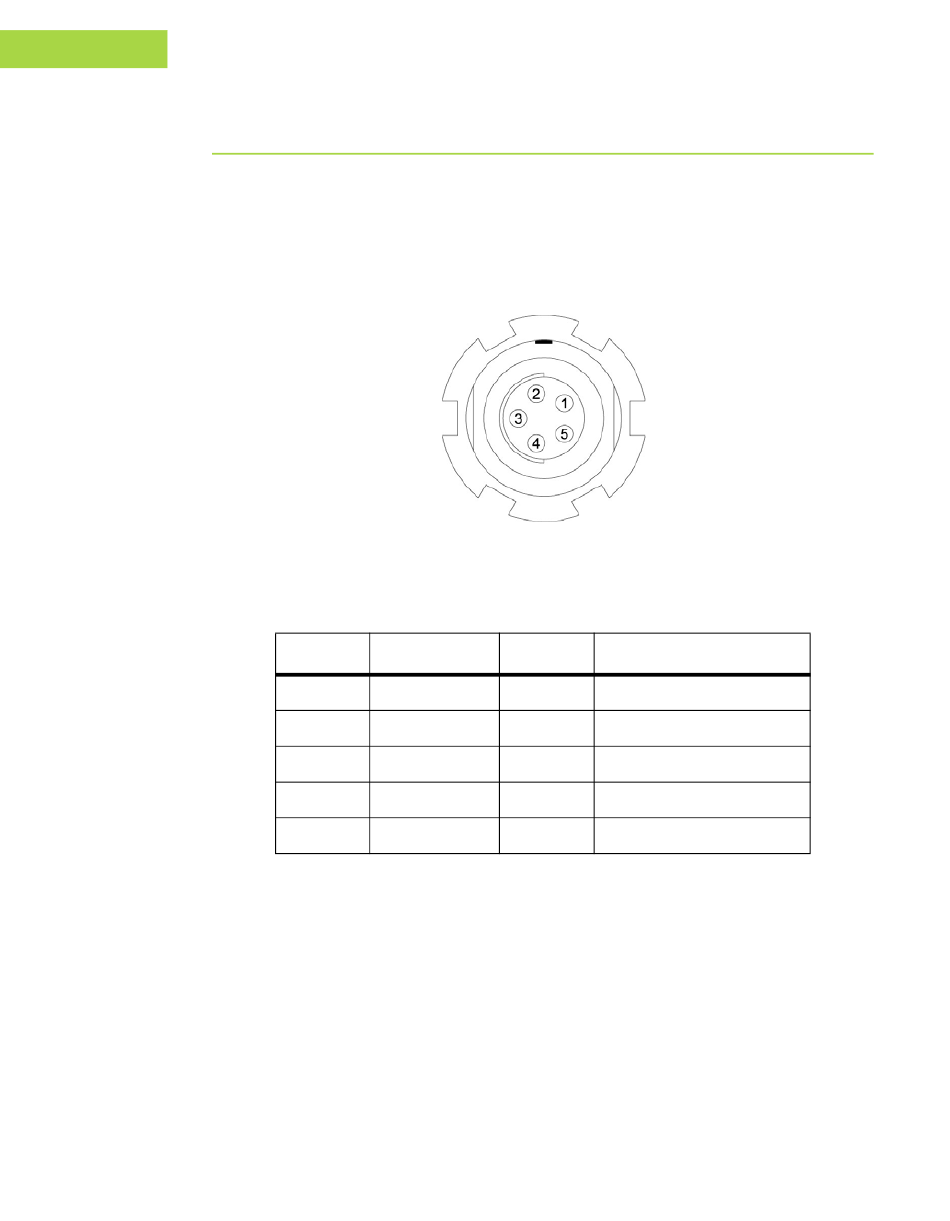

Figure B-1. Power Connector
Table B-3 gives power connector specifications.
Number Signal Name
1 Power_INP
2 Power_INP
3 Power_GND
4 Power_GND
5
Table B-3.
Dir Details
P 9 to 35 volts DC input
P 9 to 35 volts DC input
P Ground, power return
P Ground, power return
Not used
