Getting Acquainted

Bottom Panel

1-14 Prego Operator's Manual
Figure 1-5 shows the bottom panel components:
MinPad

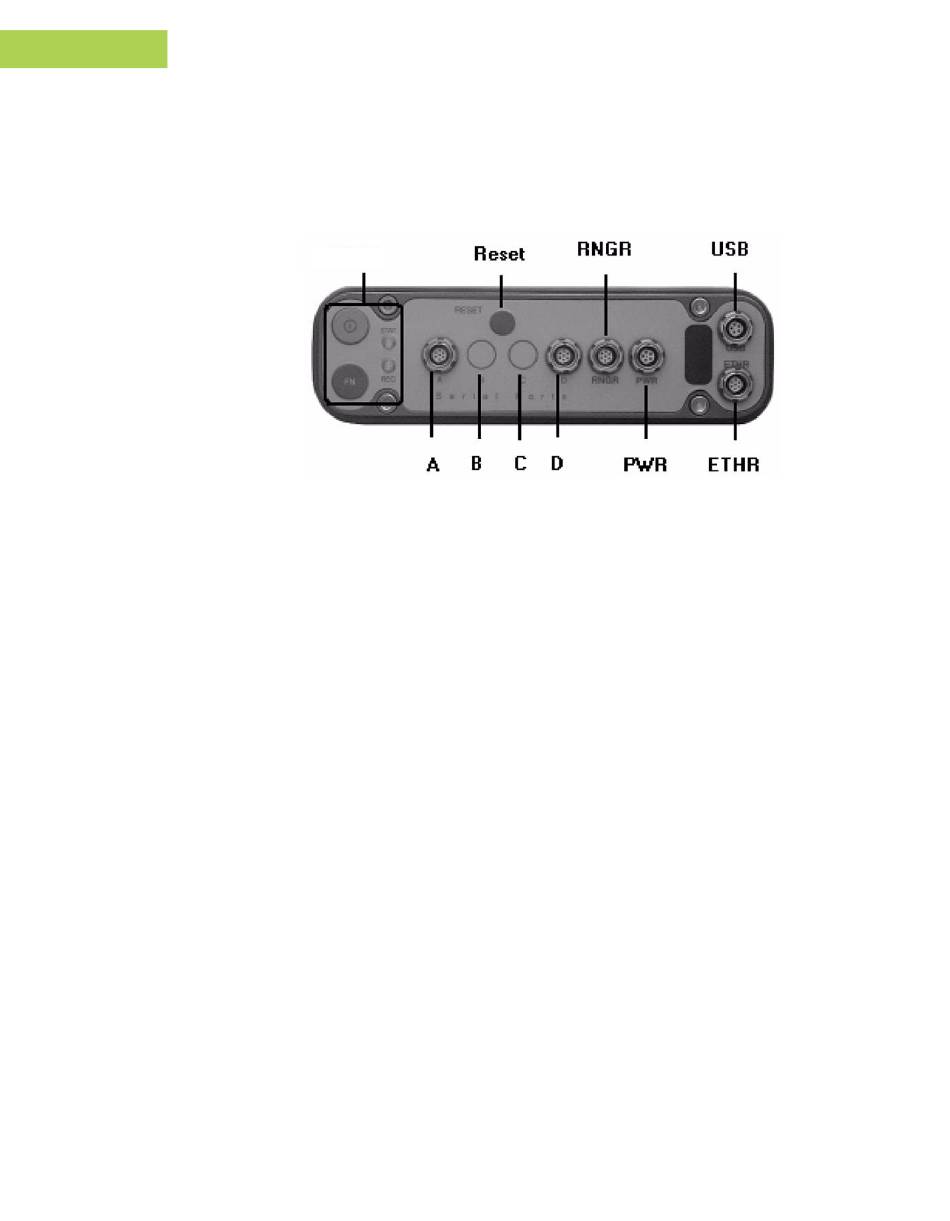

Figure 1-5. Prego Bottom Panel
• MinPad – The simple user interface for the Prego receiver. The MinPad
consists of two keys and two, three-color LEDs. See "Using the
MinPad" on page 4-1 for descriptions and usages of the MinPad
components.
• Reset – This key performs a hard reset for both the receiver board and
the power board. Once this key is pressed, the controllers governing the
receiver and power boards are rebooted and the device restarts.
This key can be used to leave Zero Power Mode or if the receiver does
not respond to commands. See "Using the MinPad" on page 4-1 for
more information on the Reset key.
• A – This serial port is used for communication between the Prego and
the external controller, computer, external radio modem, or other
devices.
• B – This serial port is installed upon request and only when the internal
controller is absent. If the internal controller is present, this port is used
internally to connect the receiver and controller boards.
• C – This serial port is installed upon request and only when the internal
modem is absent. If the internal modem is present, this port is used
internally to connect the receiver and modem boards.
• D – This serial port is used for communication between the Prego and
the external controller, computer, external radio modem, or other
devices.
