A.2. Connector Specifications

Power Connector

Rimmed in red, the power connector (Figure A-1) is a sealed receptacle, 5 pin, ODU p/n
G80F1C-T05QF00-0000.
Table A-6 gives power connector specifications.
www.javad.com
3
4

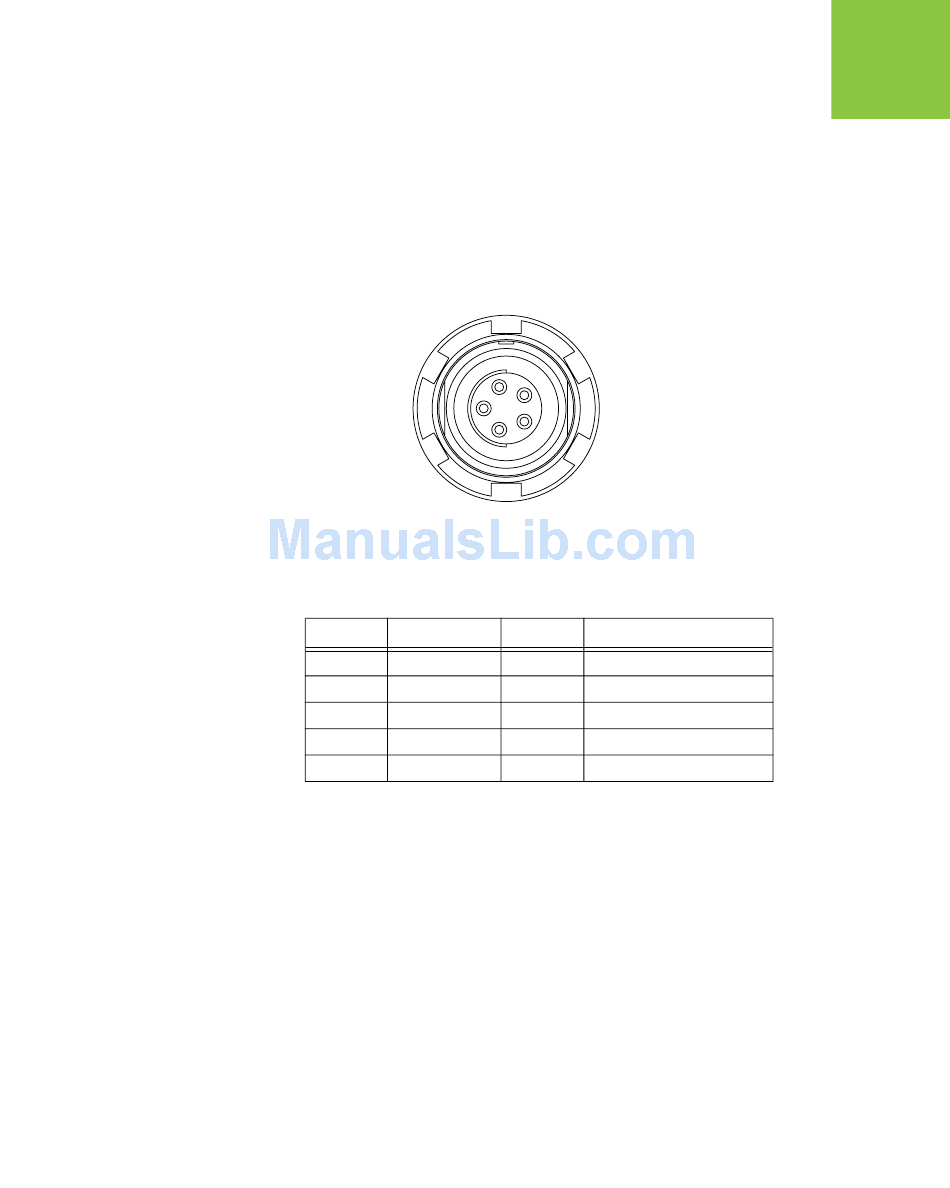

Figure A-1. Power Connector
Table A-6. Power Connector Specifications
Number Signal Name
1 Power_INP
2 Power_INP
3 Power_GND
4 Power_GND
5
2
1
5
Dir Details
P 10 to 30 volts DC input
P 10 to 30 volts DC input
P Ground, power return
P Ground, power return
Not used
