Program Tab Settings - Javad Prego Operator's Manual

11.
12.
Notice: If you selected an incorrect RAM file, an error message will display at
the bottom of the dialog box. Select the correct file.
13.
14.
www.javad.com
Click the Program tab. Browse for and select the Power board's RAM file
(powbrd.ldr) (Figure 4-23).
Click Load and wait until 100% of the power board file load into your
receiver.
Click File->Exit.
Clear the receiver's NVRAM (see "Clearing the NVRAM" on page 4-18)
and update the almanac (see "Collecting Almanacs" on page 2-33) after
loading new firmware.

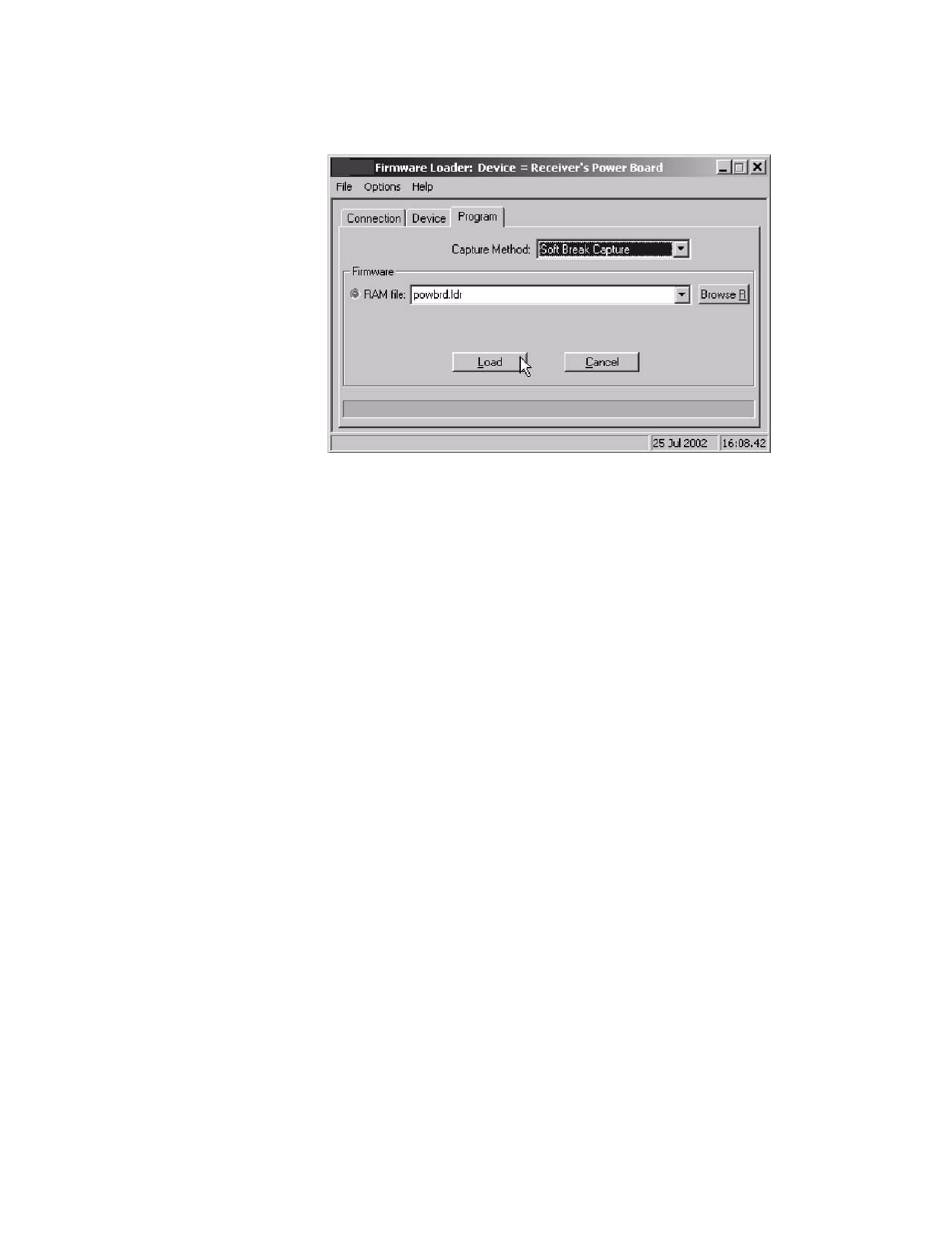

Figure 4-23. Program Tab Settings
O P E R A T I O N
Loading New Firmware
Prego Operator's Manual 4-25
