Connector Specifications

This sections list JNSGyro-4T connector details.

Power Connector

www.javad.com

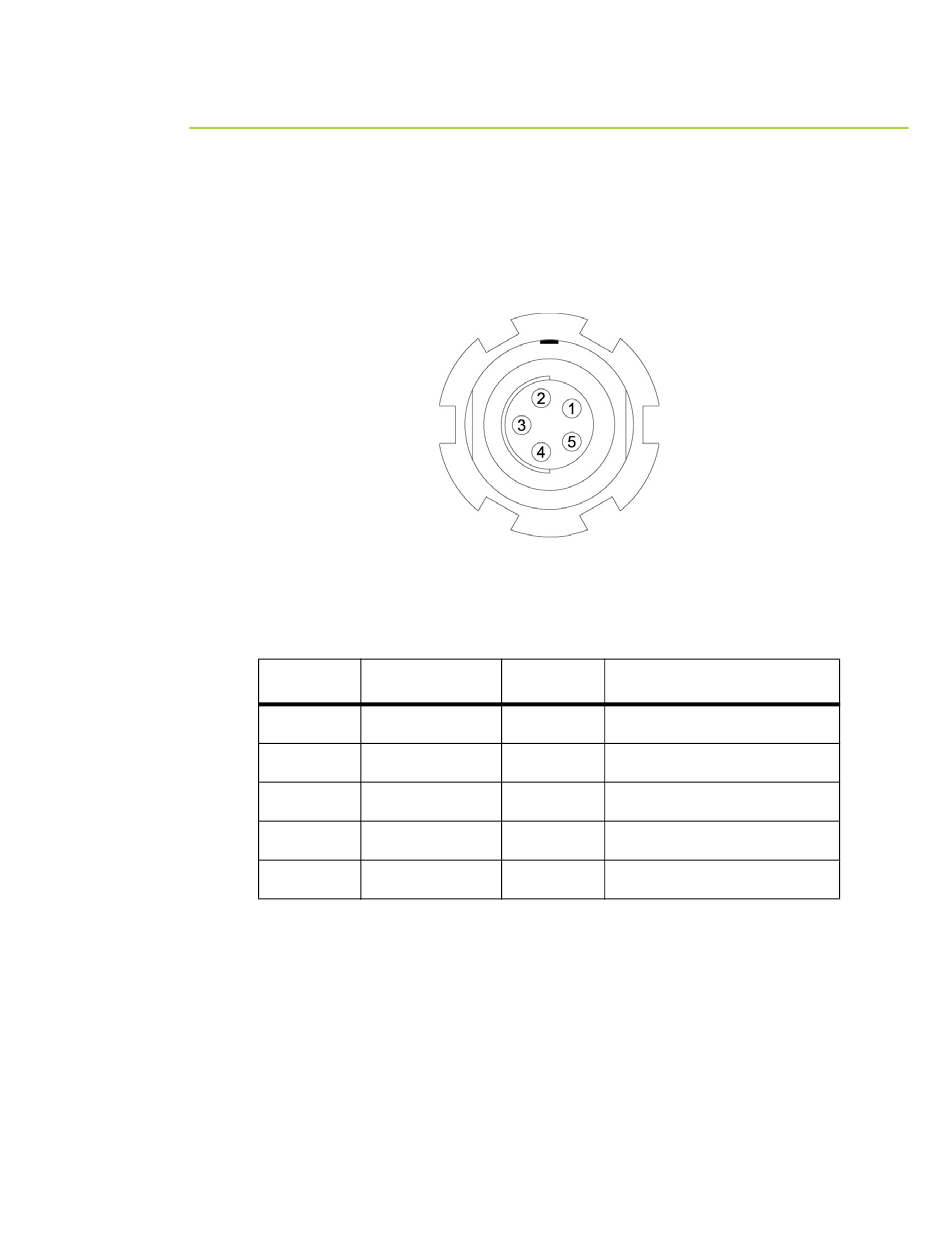

The power connector (Figure B-1) is a sealed receptacle, 5 pin, ODU
p/n G80F1C-T05QF00-0000.
Figure B-1. Power Connector
Table B-3 gives power connector specifications.
Number Signal Name
1 Power_INP
2 Power_INP
3 Power_GND
4 Power_GND
5
Table B-3.
Dir
P 6 to 32 volts DC input
P 6 to 32 volts DC input
P Ground, power return
P Ground, power return
Not used
