Setting up an RTK Base Station

Notice: Connect the radio antenna before switching the modem to the
transmitting mode.
www.javad.com
To configure a RTK Base station using PCView, take the following
steps:
1.Set up the Base station receiver's antenna as described in "Setup
Antenna" on page 3-1.
2.Connect an external modem to port C. The internal radio should
already have been configured.

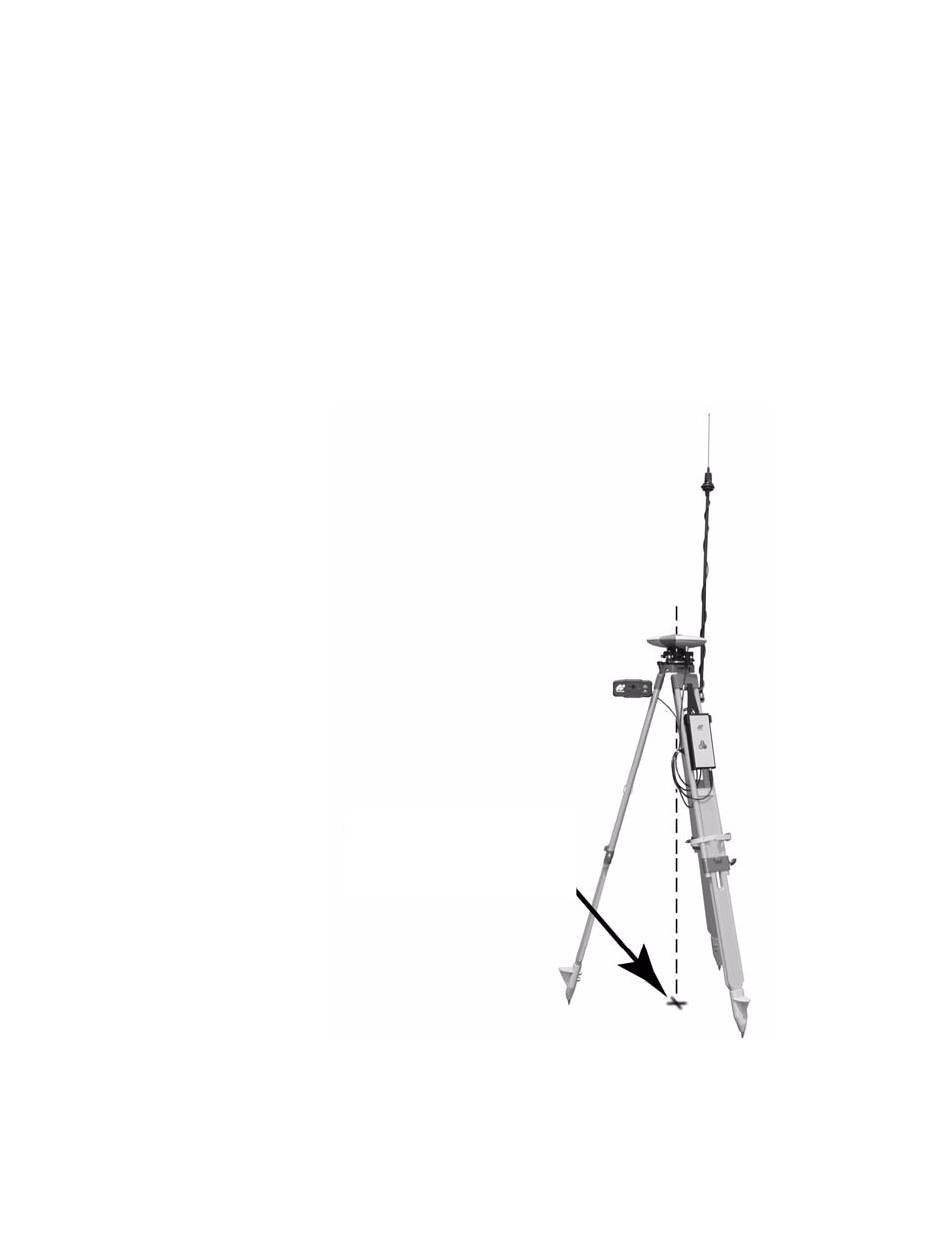

3.Set up hardware as shown in Figure 3-8. This setup shows a Base
station setup.
Plumb Base station
antenna over
measuring
measuring mark
Figure 3-8. Base Station Setup
S E T U P A N D M E A S U R I N G
Measuring with the Prego
Prego Operator's Manual 3-13
