Serial RS232 Connector

Number
1
2
3
4
5
6
7
www.javad.com
For ports A and D. The RS232 connectors (Figure B-2) are sealed
receptacle, 7 pin connector with ODU part number G80F1C-T07QC00-
0000.
Table B-3gives the RS232 connector specifications.
Table B-3. RS232 Connector Specifications
Signal Name
Power_OUT
GND
CTS
RTS
RXD
TXD

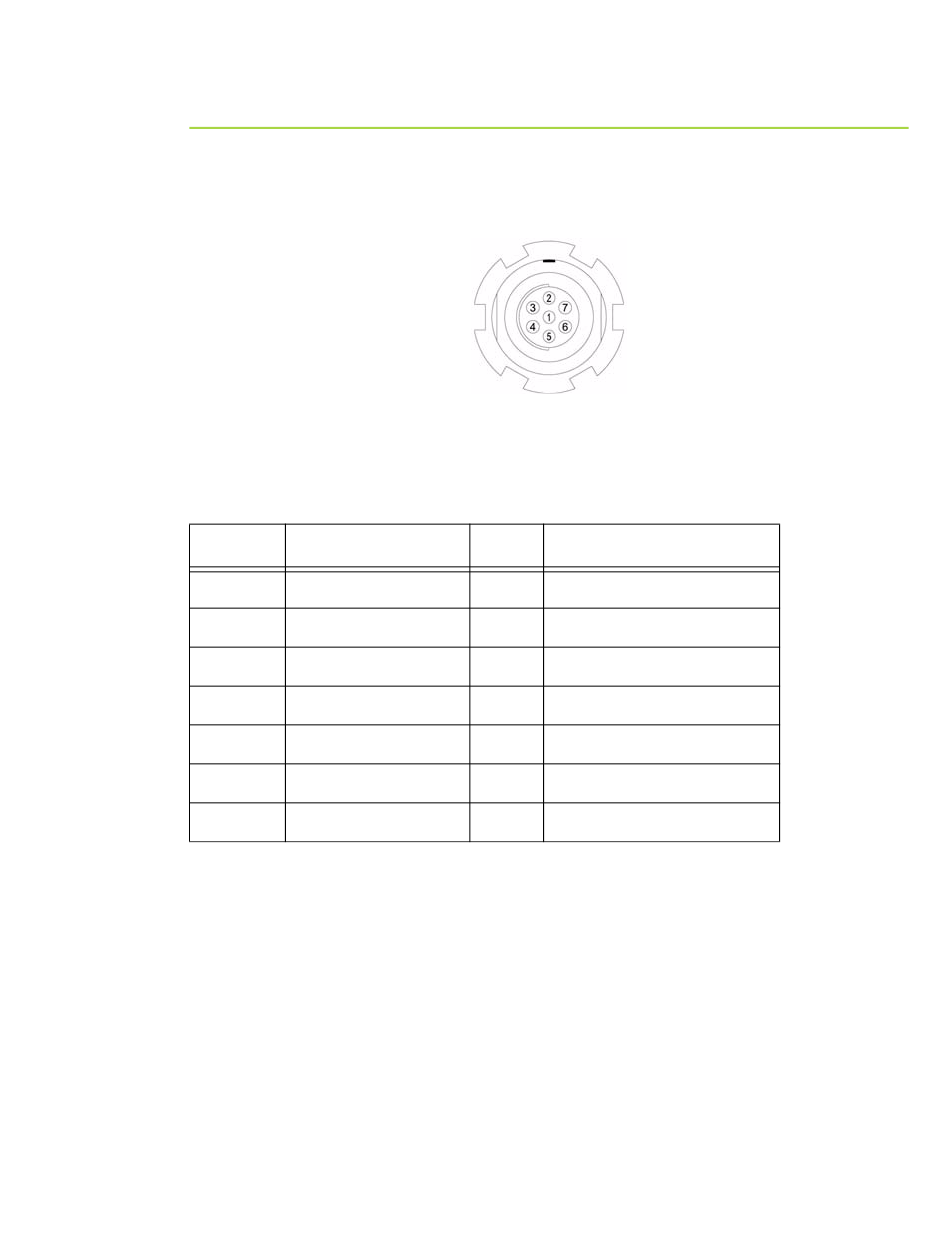

Figure B-2. RS232 Connector
Dir
P Power Output (I<0.2 A)
- Signal ground
I Clear to send
O Request to send
I Receive data
O Transmit data
Not used
