C O N F I G U R A T I O N
2
Prego Configuration
The receiver's serial number and part number can be found on the bottom panel.
If your jobsite is in an area that has obstructions (buildings, trees, etc.), and/or
the antenna location is near reflective objects, configure the receiver to reduce
errors from these sources in the Advanced tab.
Warning: Do not make other changes without consulting the
PCView User's Manual.
Click the Advanced tab on the Receiver Configuration screen (Figure 2-8).
1.
Click the Multipath Reduction tab, enable the following boxes, and click
2.
Apply (Figure 2-9):
• Code multipath reduction
• Carrier multipath reduction
2-8 Prego Operator's Manual

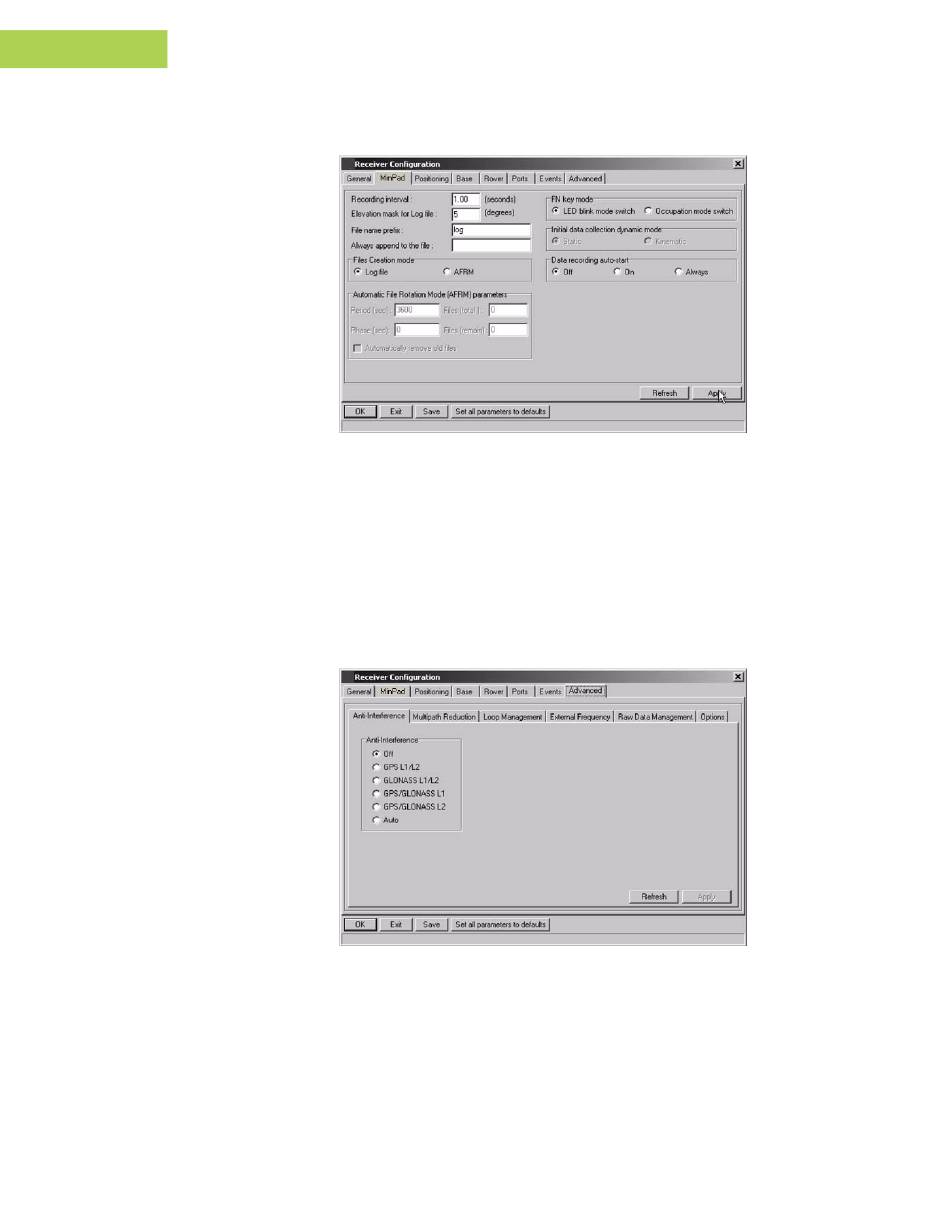

Figure 2-7. Receiver Configuration – MinPad Tab
Figure 2-8. Receiver Configuration – Advanced Tab
