1
PANEL DESCRIPTION

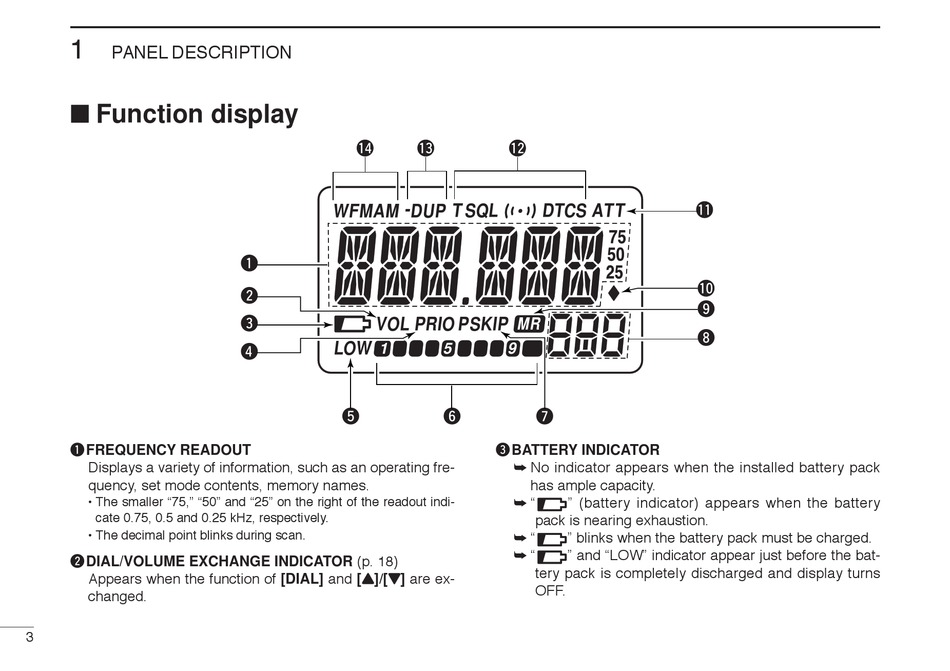

■ Function display
q FREQUENCY READOUT
Displays a variety of information, such as an operating fre-
quency, set mode contents, memory names.
• The smaller "75," "50" and "25" on the right of the readout indi-
cate 0.75, 0.5 and 0.25 kHz, respectively.
• The decimal point blinks during scan.
w DIAL/VOLUME EXCHANGE INDICATOR (p. 18)
Appears when the function of [DIAL] and [Y Y ]/[Z Z ] are ex-
changed.
3
!4
!3
WFMAM - DUP
q
w
e
VOL PRIO P SKIP
r
LOW
1
t
!2
T SQL
DTCS
ATT
MR
5
9
y
u
e BATTERY INDICATOR
➥ No indicator appears when the installed battery pack
has ample capacity.
➥ "
" (battery indicator) appears when the battery
pack is nearing exhaustion.
➥ "
" blinks when the battery pack must be charged.
➥ "
" and "LOW" indicator appear just before the bat-
tery pack is completely discharged and display turns
OFF.
!1
!0
o
i
