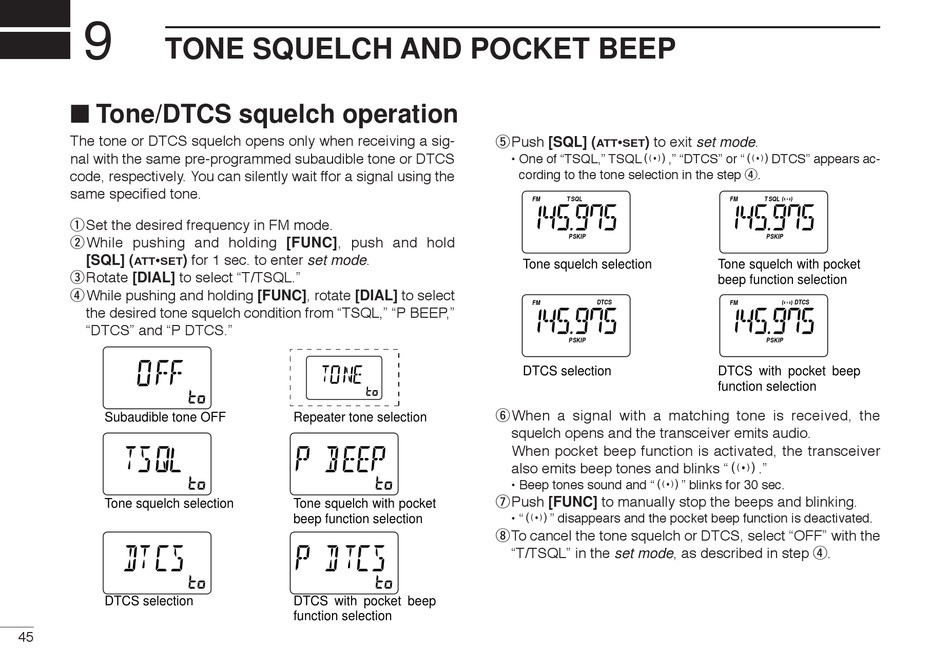

TONE SQUELCH AND POCKET BEEP

■ Tone/DTCS squelch operation

The tone or DTCS squelch opens only when receiving a sig-
nal with the same pre-programmed subaudible tone or DTCS
code, respectively. You can silently wait ffor a signal using the
same specified tone.
q Set the desired frequency in FM mode.
wWhile pushing and holding [FUNC], push and hold
[SQL] ( • ) for 1 sec. to enter set mode.
ATT SET
e Rotate [DIAL] to select "T/TSQL."
rWhile pushing and holding [FUNC], rotate [DIAL] to select
the desired tone squelch condition from "TSQL," "P BEEP,"
"DTCS" and "P DTCS."
WFMAM - DUP
T SQL DTCS ATT
VOL PRIO P SKIP MR
LOW 1 5 9
Subaudible tone OFF
WFMAM - DUP
T SQL DTCS ATT
VOL PRIO P SKIP MR
LOW 1 5 9
Tone squelch selection
WFMAM - DUP
T SQL DTCS ATT
VOL PRIO P SKIP MR
LOW 1 5 9
DTCS selection
45
WFMAM -DUP T SQL DTCS ATT
VOL PRIO P SKIP MR
LOW 1 5 9
Repeater tone selection
WFMAM - DUP
T SQL DTCS ATT
VOL PRIO P SKIP MR
LOW 1 5 9
Tone squelch with pocket
beep function selection
WFMAM - DUP
T SQL DTCS ATT
VOL PRIO P SKIP MR
LOW 1 5 9
DTCS with pocket beep
function selection
t Push [SQL] (
• ) to exit set mode.
ATT SET
• One of "TSQL," TSQLS," "DTCS" or "SDTCS" appears ac-
cording to the tone selection in the step r.
WFMAM - DUP T SQL DTCS ATT
VOL PRIO PSKIP MR
LOW 5 9
1
Tone squelch selection
WFMAM - DUP
T SQL DTCS ATT
VOL PRIO PSKIP
MR
LOW 1 5 9
DTCS selection
yWhen a signal with a matching tone is received, the
squelch opens and the transceiver emits audio.
When pocket beep function is activated, the transceiver
also emits beep tones and blinks "S."
• Beep tones sound and "S" blinks for 30 sec.
u Push [FUNC] to manually stop the beeps and blinking.
• "S" disappears and the pocket beep function is deactivated.
iTo cancel the tone squelch or DTCS, select "OFF" with the
"T/TSQL" in the set mode, as described in step r.
WFMAM - DUP T SQL DTCS ATT
VOL PRIO PSKIP MR
LOW 5 9
1
Tone squelch with pocket
beep function selection
WFMAM - DUP
T SQL DTCS ATT
VOL PRIO PSKIP
MR
LOW 1 5 9
DTCS with pocket beep
function selection
