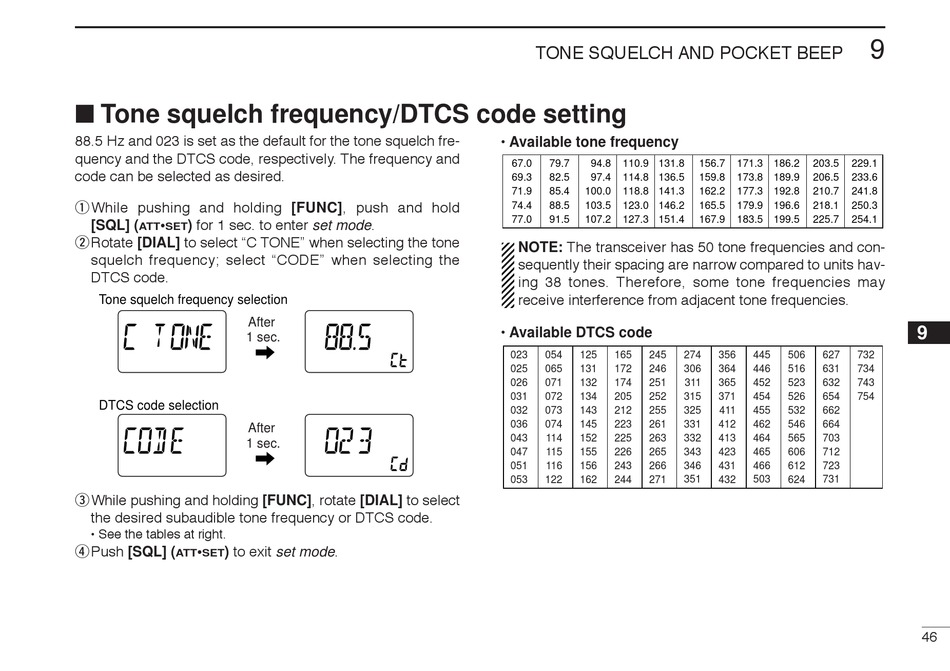

■ Tone squelch frequency/DTCS code setting

88.5 Hz and 023 is set as the default for the tone squelch fre-
quency and the DTCS code, respectively. The frequency and
code can be selected as desired.
qWhile pushing and holding [FUNC], push and hold
[SQL] ( • ) for 1 sec. to enter set mode.
ATT SET
wRotate [DIAL] to select "C TONE" when selecting the tone
squelch frequency; select "CODE" when selecting the
DTCS code.
Tone squelch frequency selection
WFMAM - DUP ATT
T SQL DTCS
After
1 sec.
VOL PRIO P SKIP MR
LOW
1 5 9
DTCS code selection
WFMAM - DUP T SQL DTCS ATT
After
1 sec.
VOL PRIO P SKIP MR
LOW
1 5 9
eWhile pushing and holding [FUNC], rotate [DIAL] to select
the desired subaudible tone frequency or DTCS code.
• See the tables at right.
r Push [SQL] (
) to exit set mode.
•
ATT SET
WFMAM - DUP ATT
T SQL DTCS
VOL PRIO P SKIP MR
LOW
1 5 9
WFMAM - DUP T SQL DTCS ATT
VOL PRIO P SKIP MR
LOW
1 5 9
TONE SQUELCH AND POCKET BEEP
• Available tone frequency
67.0 79.7 94.8 110.9 131.8
69.3 82.5 97.4 114.8 136.5
71.9 85.4 100.0 118.8 141.3
74.4 88.5 103.5 123.0 146.2
77.0 91.5 107.2 127.3 151.4
NOTE: The transceiver has 50 tone frequencies and con-
sequently their spacing are narrow compared to units hav-
ing 38 tones. Therefore, some tone frequencies may
receive interference from adjacent tone frequencies.
• Available DTCS code
023 054 125 165 245
025 065 131 172 246
026 071 132 174 251
031 072 134 205 252
032 073 143 212 255
036 074 145 223 261
043 114 152 225 263
047 115 155 226 265
051 116 156 243 266
053 122 162 244 271
156.7 171.3 186.2 203.5 229.1
159.8 173.8 189.9 206.5 233.6
162.2 177.3 192.8 210.7 241.8
165.5 179.9 196.6 218.1 250.3
167.9 183.5 199.5 225.7 254.1
274 356 445 506 627 732
306 364 446 516 631 734
311 365 452 523 632 743
315 371 454 526 654 754
325 411 455 532 662
331 412 462 546 664
332 413 464 565 703
343 423 465 606 712
346 431 466 612 723
351 432 503 624 731
