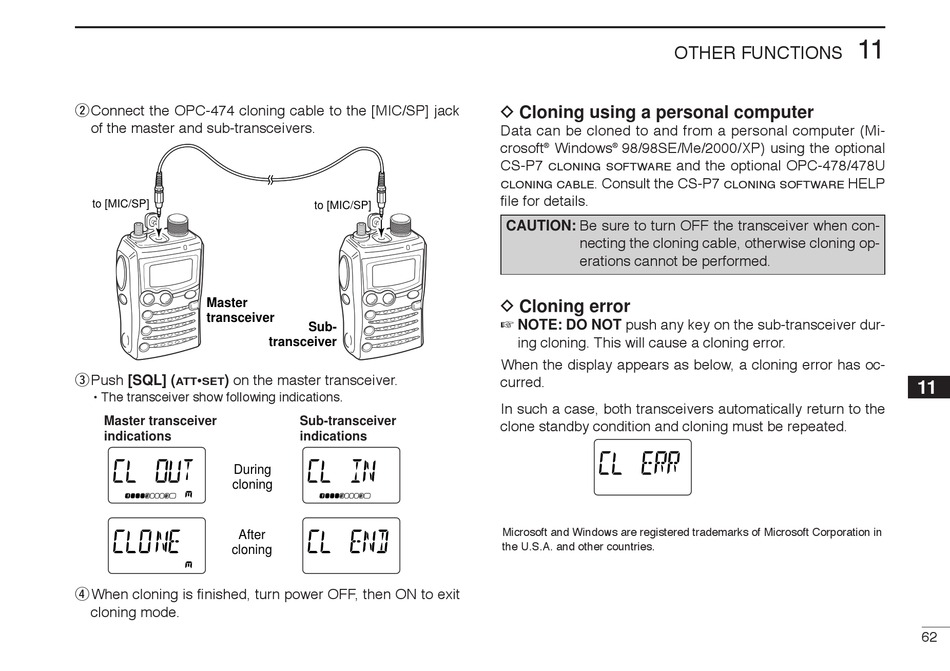

wConnect the OPC-474 cloning cable to the [MIC/SP] jack
of the master and sub-transceivers.
to [MIC/SP]
Master
transceiver
ePush [SQL] (
) on the master transceiver.
•
ATT SET
• The transceiver show following indications.
Master transceiver
indications
WFMAM - DUP
T SQL DTCS ATT
During
cloning
VOL PRIO P SKIP MR
LOW 1 5 9
WFMAM - DUP T SQL DTCS ATT
After
cloning
VOL PRIO P SKIP MR
LOW
1 5 9
rWhen cloning is finished, turn power OFF, then ON to exit
cloning mode.
to [MIC/SP]
Sub-
transceiver
Sub-transceiver
indications
WFMAM - DUP
T SQL DTCS ATT
VOL PRIO P SKIP MR
LOW 1 5 9
WFMAM - DUP T SQL DTCS ATT
VOL PRIO P SKIP MR
LOW
1 5 9
OTHER FUNCTIONS
D Cloning using a personal computer
Data can be cloned to and from a personal computer (Mi-
crosoft ® Windows ® 98/98SE/Me/2000/XP) using the optional
CS-P7 and the optional OPC-478/478U
CLONING SOFTWARE
. Consult the CS-P7
CLONING CABLE
file for details.
CAUTION: Be sure to turn OFF the transceiver when con-
necting the cloning cable, otherwise cloning op-
erations cannot be performed.
D Cloning error
☞ NOTE: DO NOT push any key on the sub-transceiver dur-
ing cloning. This will cause a cloning error.
When the display appears as below, a cloning error has oc-
curred.
In such a case, both transceivers automatically return to the
clone standby condition and cloning must be repeated.
WFMAM - DUP
T SQL DTCS ATT
VOL PRIO P SKIP MR
LOW 1 5 9
Microsoft and Windows are registered trademarks of Microsoft Corporation in
the U.S.A. and other countries.
