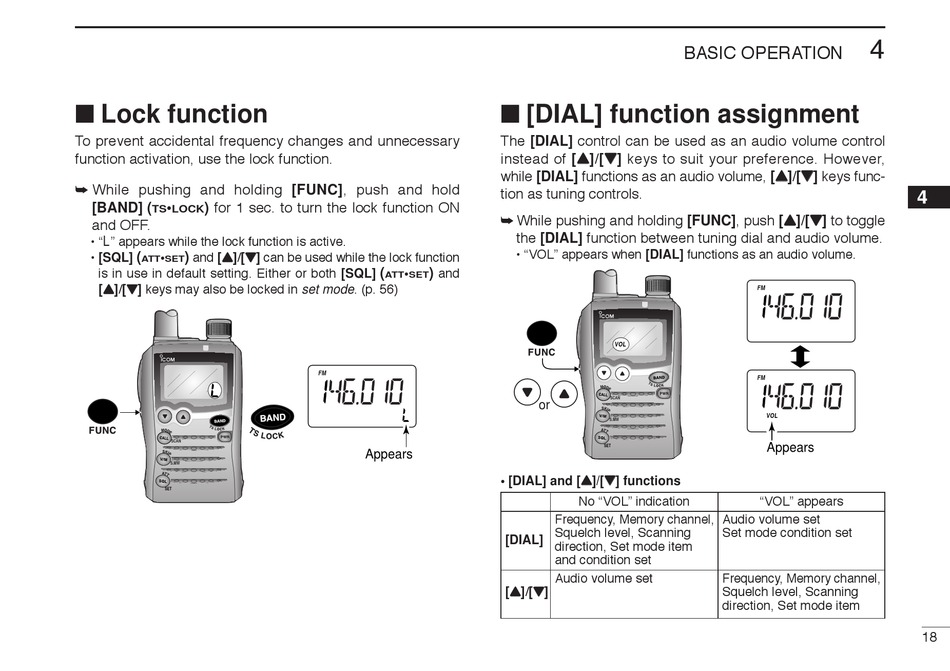

■ Lock function

To prevent accidental frequency changes and unnecessary
function activation, use the lock function.
➥ While pushing and holding [FUNC], push and hold
) for 1 sec. to turn the lock function ON
[BAND] ( •
TS LOCK
and OFF.
L
• " " appears while the lock function is active.
( ) and [Y Y ]/[Z Z ] can be used while the lock function
• [SQL] •
ATT SET
is in use in default setting. Either or both [SQL]
[Y Y ]/[Z Z ] keys may also be locked in set mode. (p. 56)
SCAN
S.MW
SET
( )
• and
ATT SET
WFMAM - DUP T SQL DTCS ATT
VOL PRIO P SKIP MR
LOW
1 5 9
Appears

■ [DIAL] function assignment

The [DIAL] control can be used as an audio volume control
instead of [Y Y ]/[Z Z ] keys to suit your preference. However,
while [DIAL] functions as an audio volume, [Y Y ]/[Z Z ] keys func-
tion as tuning controls.
➥ While pushing and holding [FUNC], push [Y Y ]/[Z Z ] to toggle
the [DIAL] function between tuning dial and audio volume.
• "VOL" appears when [DIAL] functions as an audio volume.
VOL
SCAN
or
S.MW
SET
• [DIAL] and [Y Y ]/[Z Z ] functions
No "VOL" indication
Frequency, Memory channel, Audio volume set
Squelch level, Scanning
[DIAL]
direction, Set mode item
and condition set
Audio volume set
[Y Y ]/[Z Z ]
BASIC OPERATION
WFMAM - DUP T SQL DTCS ATT
VOL PRIO P SKIP MR
LOW 1 5 9
WFMAM - DUP
T SQL DTCS ATT
VOL PRIO P SKIP MR
LOW 1 5 9
Appears
"VOL" appears
Set mode condition set
Frequency, Memory channel,
Squelch level, Scanning
direction, Set mode item
