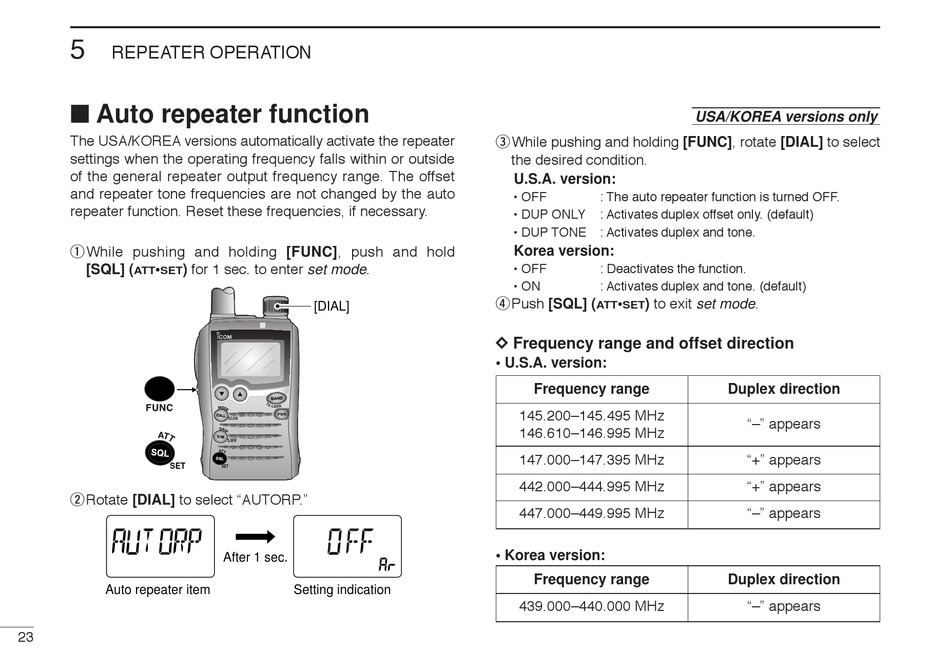

Auto Repeater Function - Icom IC-P7A Instruction Manual

5
REPEATER OPERATION

■ Auto repeater function

The USA/KOREA versions automatically activate the repeater
settings when the operating frequency falls within or outside
of the general repeater output frequency range. The offset
and repeater tone frequencies are not changed by the auto
repeater function. Reset these frequencies, if necessary.
qWhile pushing and holding [FUNC], push and hold
[SQL] ( • ) for 1 sec. to enter set mode.
ATT SET
SET
wRotate [DIAL] to select "AUTORP."
WFMAM - DUP T SQL DTCS ATT
VOL PRIO P SKIP MR
LOW
1 5 9
Auto repeater item
23
[DIAL]
SCAN
S.MW
SET
WFMAM - DUP T SQL DTCS ATT
After 1 sec.
VOL PRIO P SKIP MR
LOW
1 5 9
Setting indication
eWhile pushing and holding [FUNC], rotate [DIAL] to select
the desired condition.
U.S.A. version:
• OFF : The auto repeater function is turned OFF.
• DUP ONLY : Activates duplex offset only. (default)
• DUP TONE : Activates duplex and tone.
Korea version:
• OFF : Deactivates the function.
• ON : Activates duplex and tone. (default)
r Push [SQL] (
) to exit set mode.
•
ATT SET
D D Frequency range and offset direction
• U.S.A. version:
Frequency range
145.200–145.495 MHz
146.610–146.995 MHz
147.000–147.395 MHz
442.000–444.995 MHz
447.000–449.995 MHz
• Korea version:
Frequency range
439.000–440.000 MHz
USA/KOREA versions only
Duplex direction
"–" appears
"+" appears
"+" appears
"–" appears
Duplex direction
"–" appears
