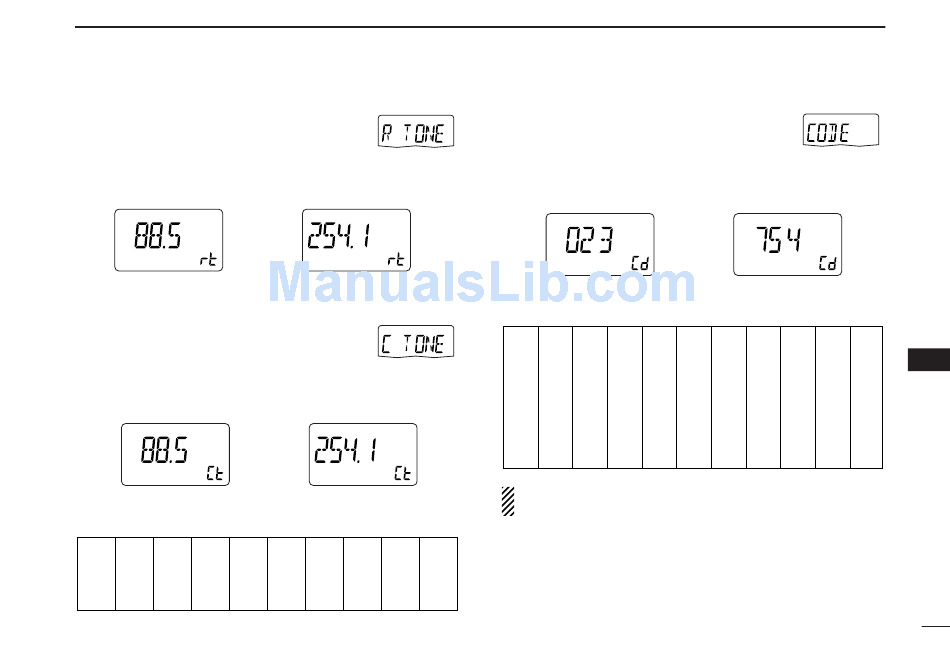

D Repeater Tone Frequency - Icom IC-P7A Instruction Manual

D D Repeater tone frequency
Selects subaudible tone frequency for ac-
cessing a repeater, etc. Total of 50 tone fre-
quencies (67.0–254.1 Hz) are available.
WFMAM - DUP T SQL DTCS ATT
VOL PRIO P SKIP MR
LOW
1 5 9
88.5 Hz setting
D D Tone squelch frequency
Selects tone frequency for tone squelch or
pocket beep operation from one of 50 avail-
able frequencies (67.0–254.1 Hz).
WFMAM - DUP
T SQL DTCS ATT
VOL PRIO P SKIP
MR
LOW 1 5 9
88.5 Hz setting
• Available subaudible tone frequencies
67.0 79.7 94.8 110.9 131.8
69.3 82.5 97.4 114.8 136.5
71.9 85.4 100.0 118.8 141.3
74.4 88.5 103.5 123.0 146.2
77.0 91.5 107.2 127.3 151.4
(default: 88.5 Hz)
WFMAM - DUP T SQL DTCS ATT
VOL PRIO P SKIP MR
LOW
1 5 9
254.1 Hz setting
(default: 88.5 Hz)
WFMAM - DUP
T SQL DTCS ATT
VOL PRIO P SKIP
MR
LOW 1 5 9
254.1 Hz setting
156.7 171.3 186.2 203.5 229.1
159.8 173.8 189.9 206.5 233.6
162.2 177.3 192.8 210.7 241.8
165.5 179.9 196.6 218.1 250.3
167.9 183.5 199.5 225.7 254.1
D D DTCS code
Selects DTCS (both encoder/decoder) code
for DTCS squelch operation. Total of 104
codes (023–754) are available.
WFMAM - DUP
T SQL DTCS ATT
VOL PRIO P SKIP
MR
LOW 1 5 9
Code 023 setting
• Available DTCS code
023 054 125 165 245
025 065 131 172 246
026 071 132 174 251
031 072 134 205 252
032 073 143 212 255
036 074 145 223 261
043 114 152 225 263
047 115 155 226 265
051 116 156 243 266
053 122 162 244 271
The polarity can also be set in "DTCS P" as described on
page 58.
